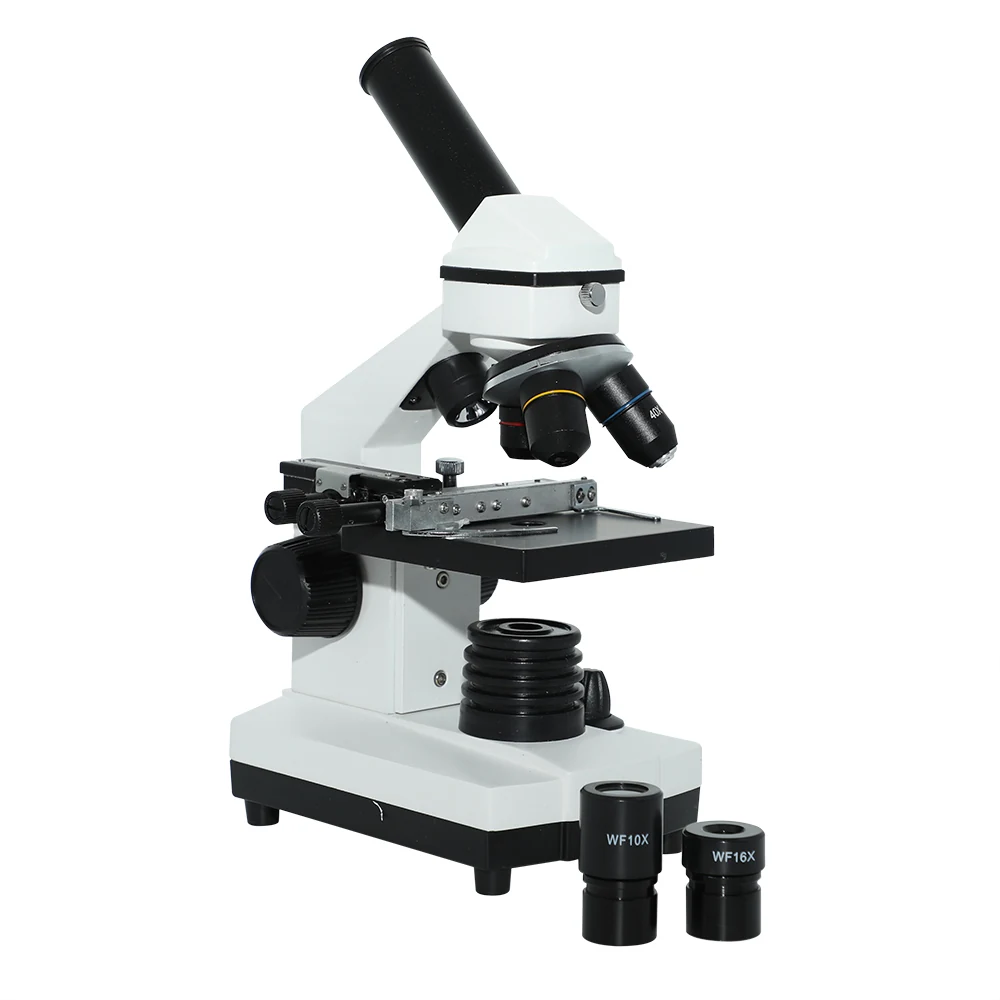

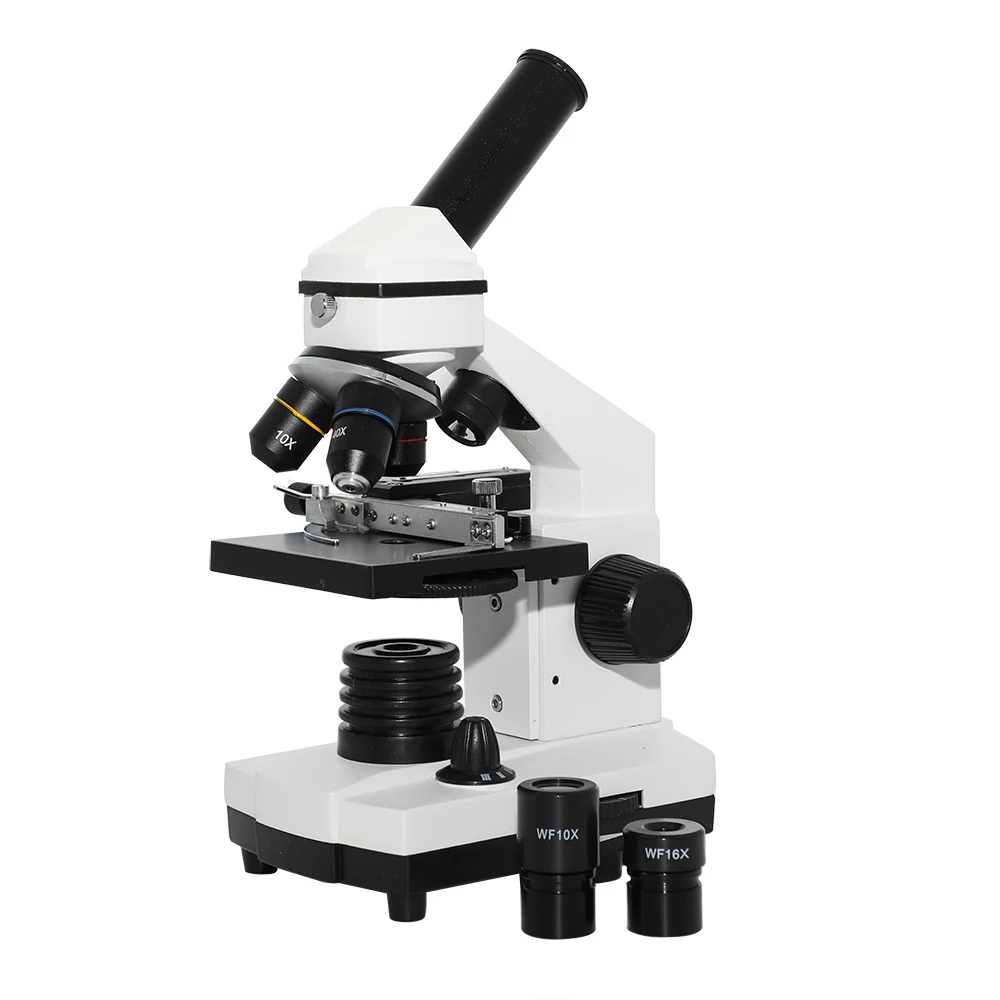

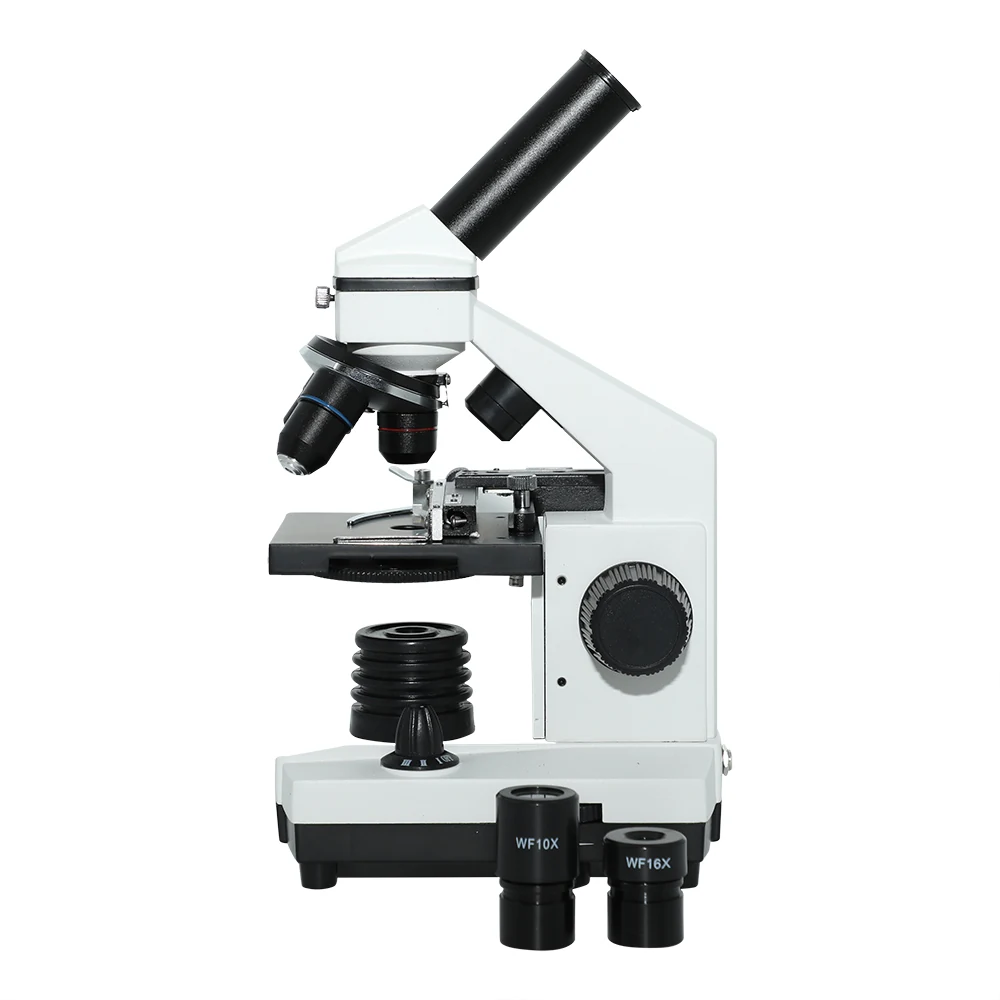

XSP600 Student Chidren Biological Microscope with LED Light
XSP600 Student Chidren Biological Microscope with LED Light
XSP600 Student Chidren Biological Microscope with LED Light
XSP600 Student Chidren Biological Microscope with LED Light
XSP600 Student Chidren Biological Microscope with LED Light
XSP600 Student Chidren Biological Microscope with LED Light

XSP600 Student Chidren Biological Microscope with LED Light

XSP600 is a monocular biological microscope designed for student and educational use, featuring a 45º inclined head, LED illumination, and magnification up to 640X. It supports 4X, 10X, and 40X objectives with a triple nosepiece and Abbe condenser for clear specimen viewing in school labs or home science activities.

  • Compact size and lightweight design suitable for children and beginners
  • 640X maximum magnification with 4X, 10X, and 40X objectives for detailed biological observation
  • LED illumination provides consistent, energy-efficient lighting without heat
  • Inclined 45º monocular head reduces neck strain during prolonged use
  • Durable metal body and focus system withstands frequent handling in classroom environments
Request A Quote +86-15195807515

Technical features

  • Viewing head: Monocular, inclined at 45º
  • Eyepiece: WF10X / 16X (user-selectable)

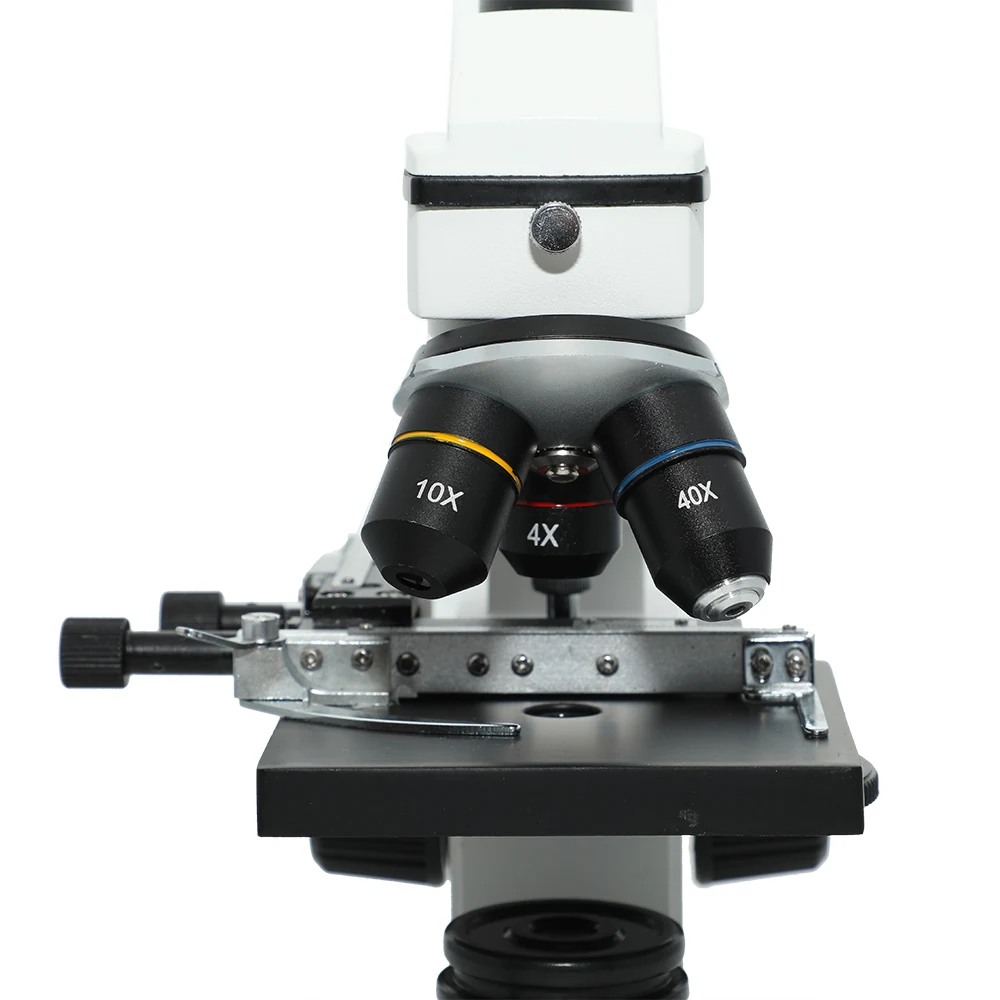

  • Objective lenses: 4X, 10X, 40X
  • Magnification: 40X, 64X, 160X, 400X, 640X (depending on eyepiece and objective combination)

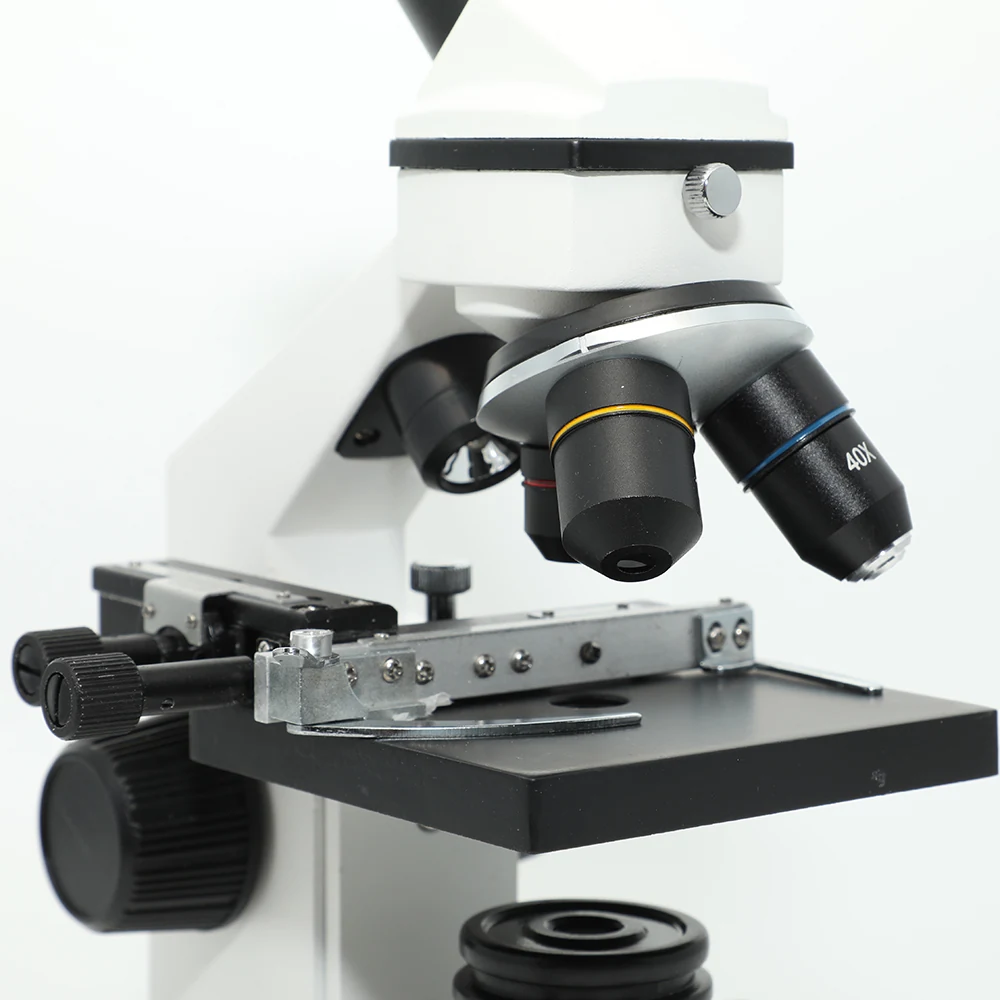

  • Nosepiece: Triple nosepiece with three objective positions

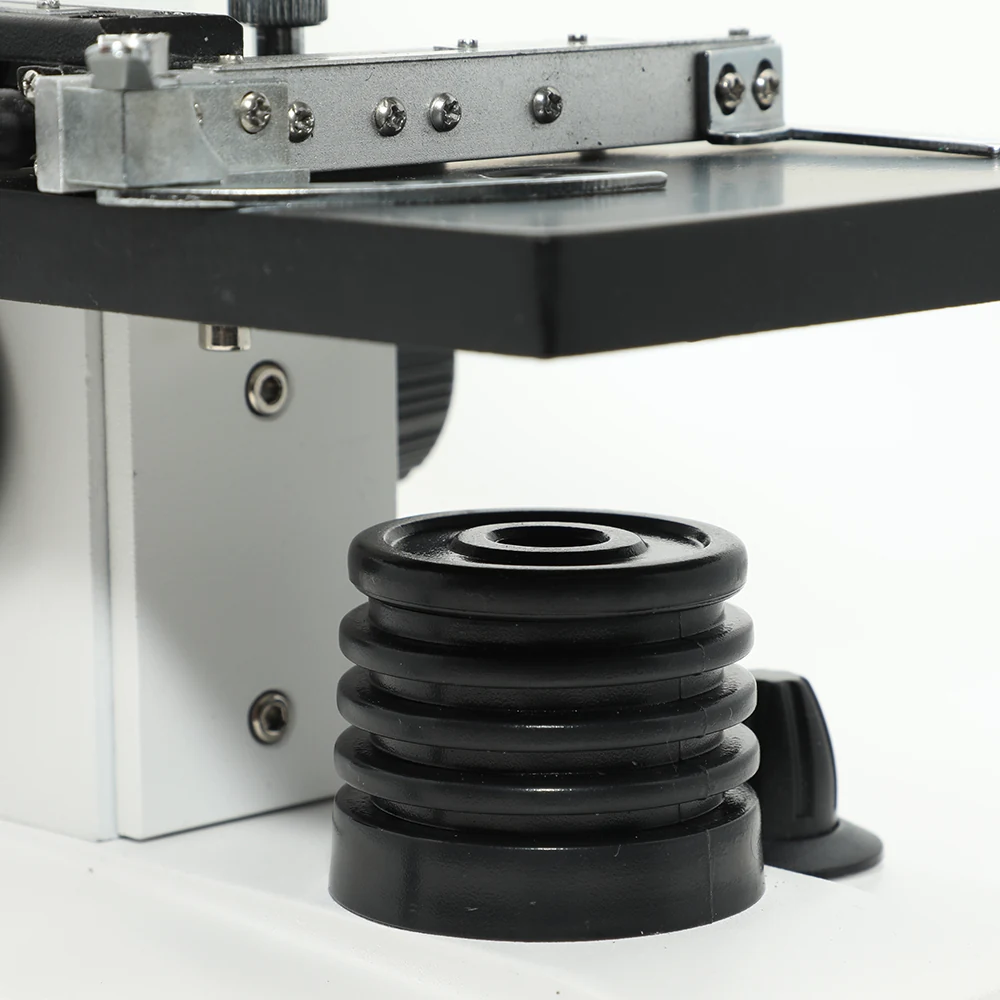

  • Condenser: Abbe condenser with NA0.65 and disc diaphragm
  • Illumination: Built-in LED light source
  • Focusing system: Coarse and fine focus knobs with rack and pinion mechanism

Who it is for

  • Schools and educational institutions purchasing microscopes for student labs
  • Parents buying science tools for children's home learning
  • Science educators and curriculum developers selecting entry-level microscopes
  • Hobbyists starting in microscopy with a simple, affordable instrument

Specifications

ModelXSP600
Viewing HeadMonocular, 45º inclined
EyepieceWF10X / 16X
Objective Lenses4X, 10X, 40X
Magnification Range40X, 64X, 160X, 400X, 640X
NosepieceTriple nosepiece
CondenserAbbe condenser, NA0.65
DiaphragmDisc diaphragm
IlluminationBuilt-in LED
Focusing SystemCoarse and fine focus with rack and pinion
StageFixed mechanical stage with clip

Use guide

  • Select eyepiece (WF10X or WF16X) based on desired field of view
  • Start with 4X objective for low magnification and broad overview
  • Switch to 10X and 40X for higher detail, adjusting focus with coarse and fine knobs
  • Use the disc diaphragm to control light intensity and contrast
  • Ensure LED is on and positioned correctly for even illumination

FAQ

What is the maximum magnification?
640X using 16X eyepiece with 40X objective lens.
Is the illumination LED or bulb-based?
Built-in LED light source, no bulb replacement needed.
Can I use this microscope for live specimens?
Yes, the LED illumination and stable focus allow for basic observation of live samples like pond water or plant cells.
Is the body made of metal?
Yes, the main body and focus mechanism are made of metal for durability.
Is it suitable for children?
Yes, its compact size, simple controls, and safe LED lighting make it ideal for children and beginners.
