XP500 Student Chidren Biological Microscope for Specimen Observation
XP500 Student Chidren Biological Microscope for Specimen Observation
XP500 Student Chidren Biological Microscope for Specimen Observation
XP500 Student Chidren Biological Microscope for Specimen Observation
XP500 Student Chidren Biological Microscope for Specimen Observation
XP500 Student Chidren Biological Microscope for Specimen Observation

XP500 Student Chidren Biological Microscope for Specimen Observation

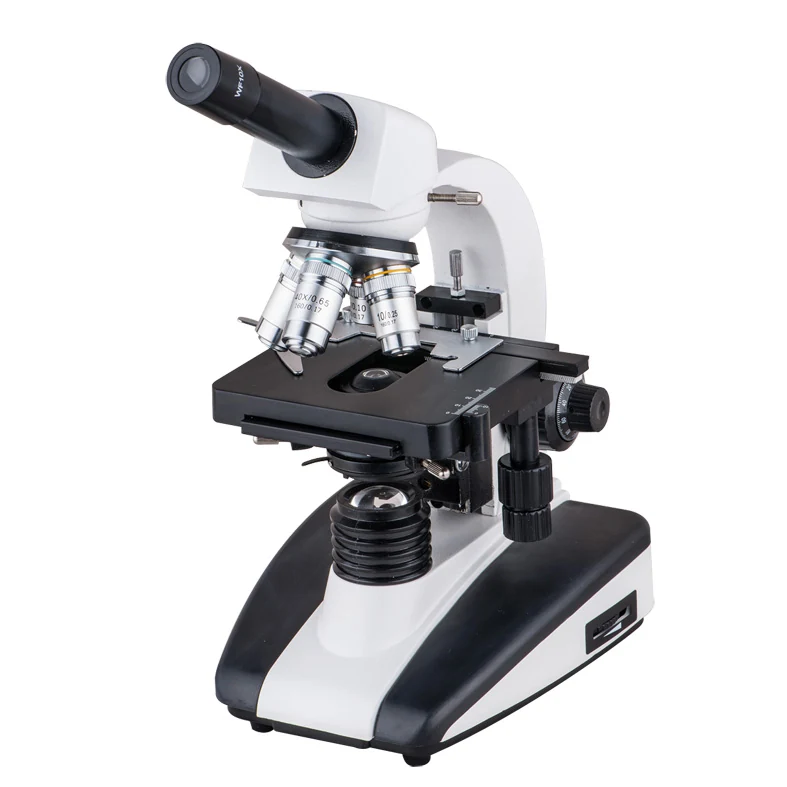

XP500 is a student biological microscope from the XP Series by Nanjing AMADA Instrument Co., Ltd. designed for specimen observation in educational and entry-level research settings. The model features an inclined monocular head, achromatic objectives (4X, 10X, 40X(S), 100X(S,Oil)), wide field eyepieces, a double layer mechanical stage, coaxial coarse and fine focusing, and halogen or optional LED illumination.

  • Inclined monocular head at 45° for comfortable viewing during prolonged use
  • Achromatic objectives with oil immersion capability for clear high-magnification imaging
  • Double layer mechanical stage (125X135mm) for precise specimen positioning
  • Coaxial coarse and fine focusing with 0.002mm interval for fine control
  • Abbe condenser with NA=1.25 and iris diaphragm for improved resolution and contrast
  • Halogen lamp standard (220V/6V20W or 110V/6V20W) with optional LED lighting
Request A Quote +86-15195807515

Technical features

  • Monocular head inclined at 45°, compensation free
  • Achromatic objectives: 4X, 10X, 40X(S), 100X(S,Oil)
  • Wide field eyepieces: WF10X standard, WF16X optional
  • Double layer mechanical stage, size 125X135mm

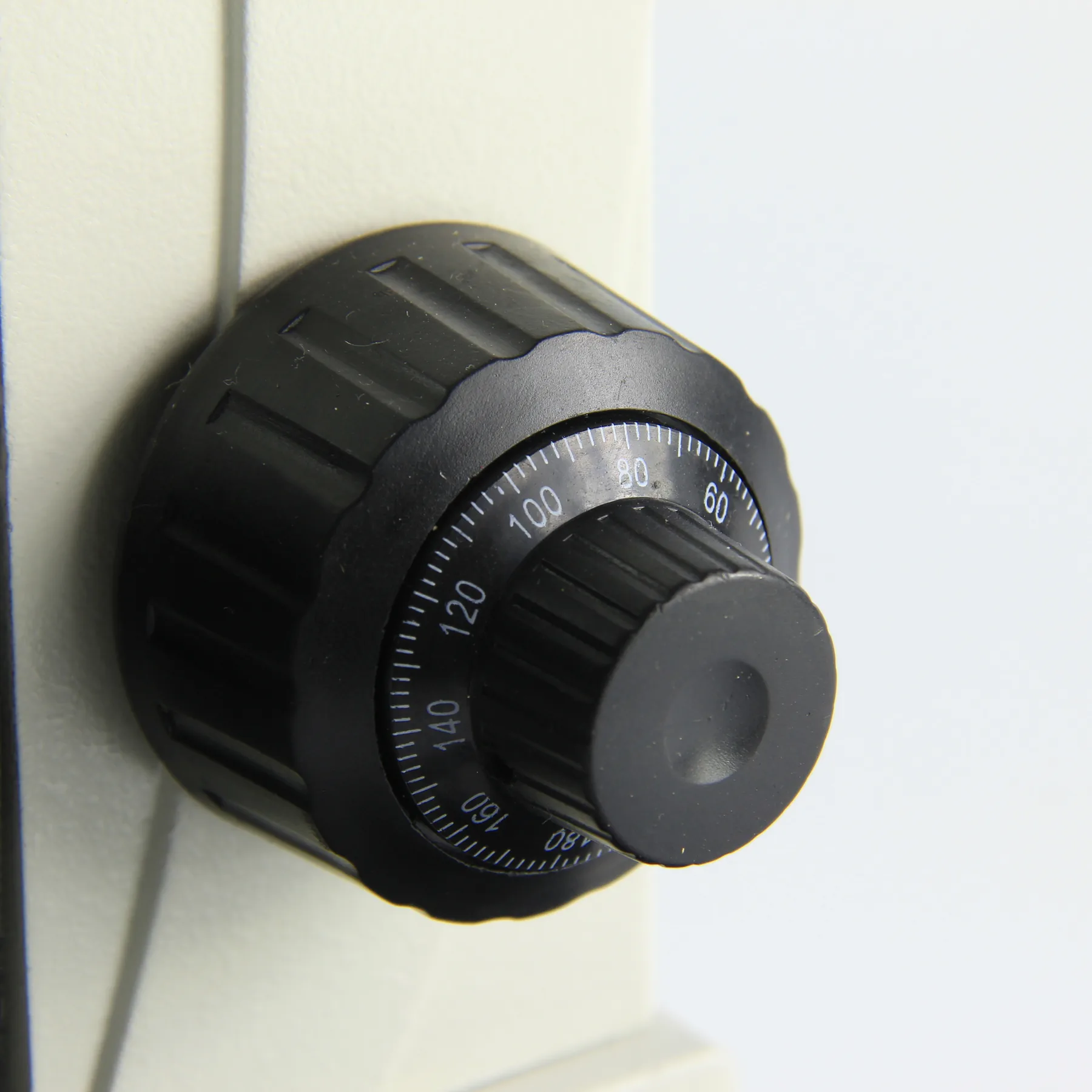

  • Coaxial coarse and fine focusing, focusing range 30mm, interval 0.002mm

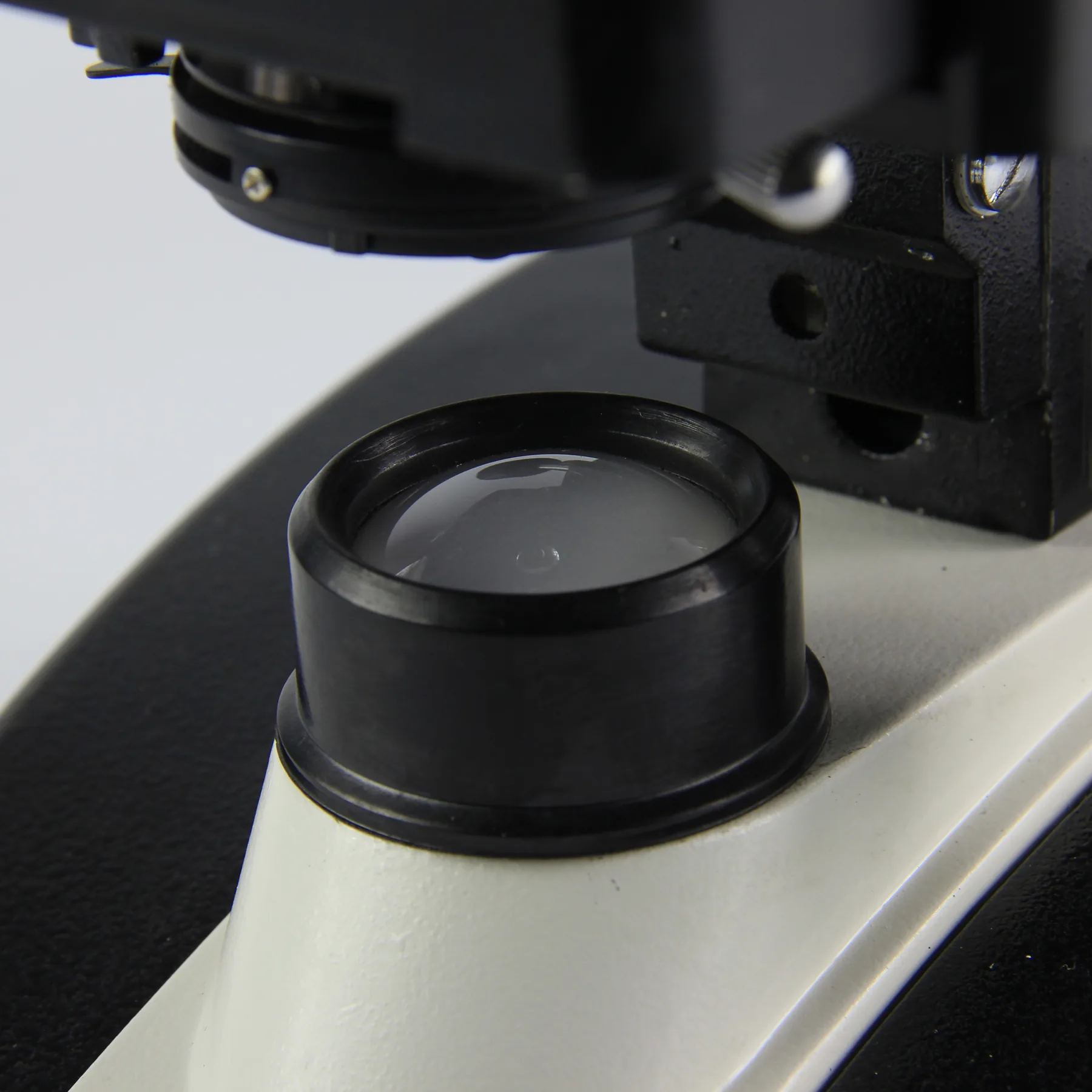

  • Abbe condenser with NA=1.25, iris diaphragm, and filter holder
  • Illumination: halogen lamp 220V/6V20W or 110V/6V20W standard; LED lamp optional
  • Built-in 110V–240V wide voltage input capability for global use

Who it is for

  • Schools and educational institutions purchasing microscopes for science curricula
  • Science teachers and lab technicians managing student equipment
  • Importers sourcing affordable biological microscopes for educational markets
  • Distributors building product lines for academic and training applications

Specifications

ModelXP500
Head TypeMonocular, 45° inclined
EyepieceWF10X standard, WF16X optional
Objectives4X, 10X, 40X(S), 100X(S,Oil)
StageDouble layer mechanical stage, 125X135mm
FocusingCoaxial coarse and fine, 30mm range, 0.002mm interval
CondenserAbbe NA=1.25 with iris diaphragm and filter
IlluminationHalogen 220V/6V20W or 110V/6V20W standard; LED optional

Use guide

  • Select XP500 for standard monocular use in classrooms or training labs
  • Choose WF16X eyepiece if wider field of view is needed for low-magnification observation
  • Select LED illumination if halogen lamp is not compatible with local voltage or power supply
  • Ensure oil immersion objective (100X) is used with immersion oil and proper cleaning procedures

FAQ

What is the viewing angle of the monocular head?
45° inclined, designed for comfortable viewing during extended use in educational settings.
Can I use the 100X objective without oil?
No. The 100X(S,Oil) objective requires immersion oil for proper function and image clarity.
Is the LED lamp compatible with 110V systems?
Yes. The optional LED lamp supports 100V–240V input, including 110V systems.
What is the focusing interval?
0.002mm per revolution of the fine focus knob.
Can I upgrade to a binocular head?

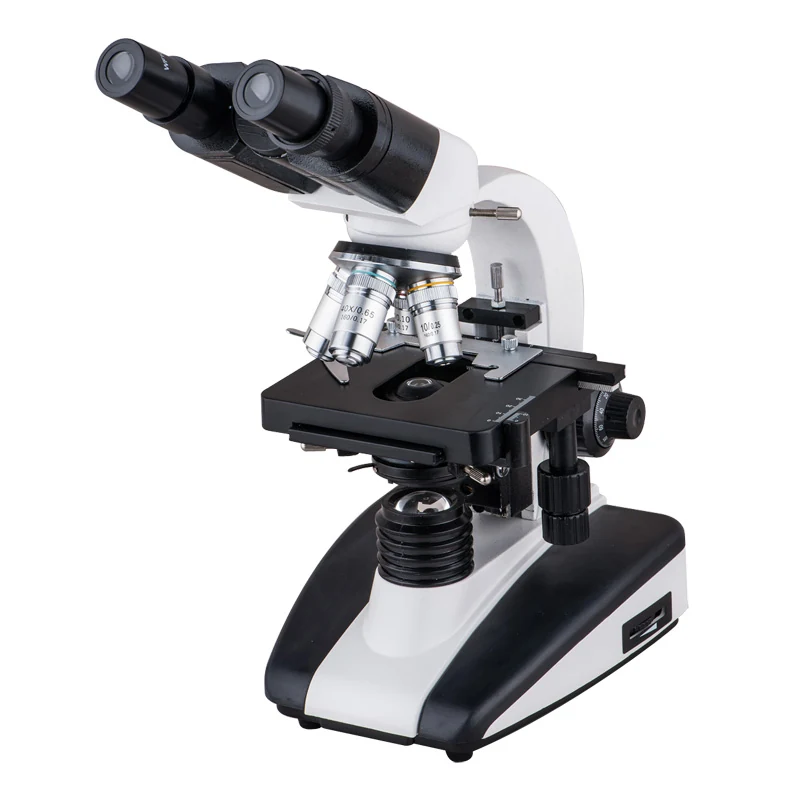

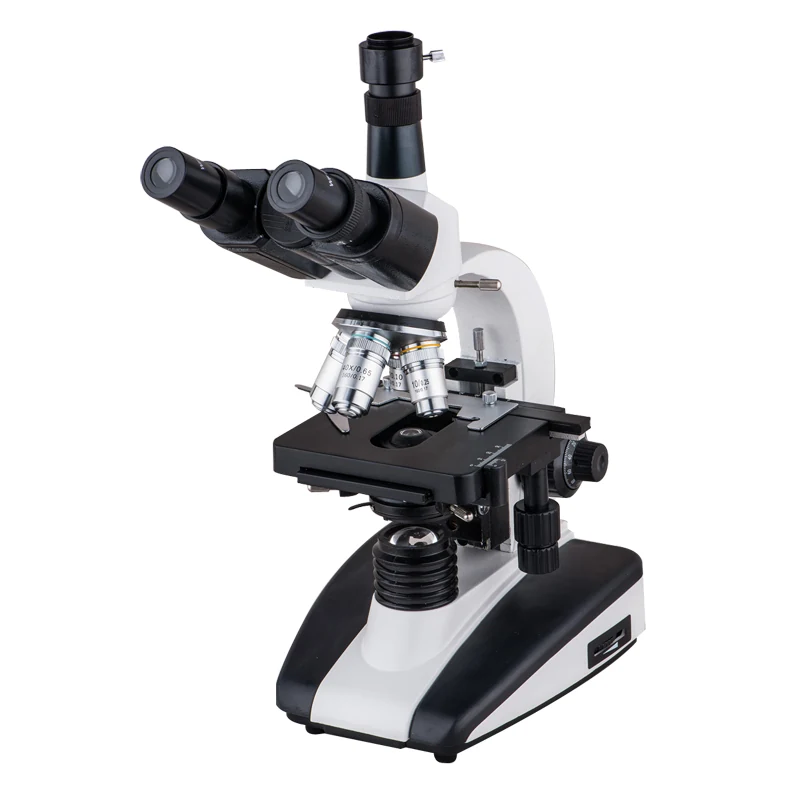

Yes. Binocular and trinocular head options are available as optional accessories; confirm availability in the outfit list.
