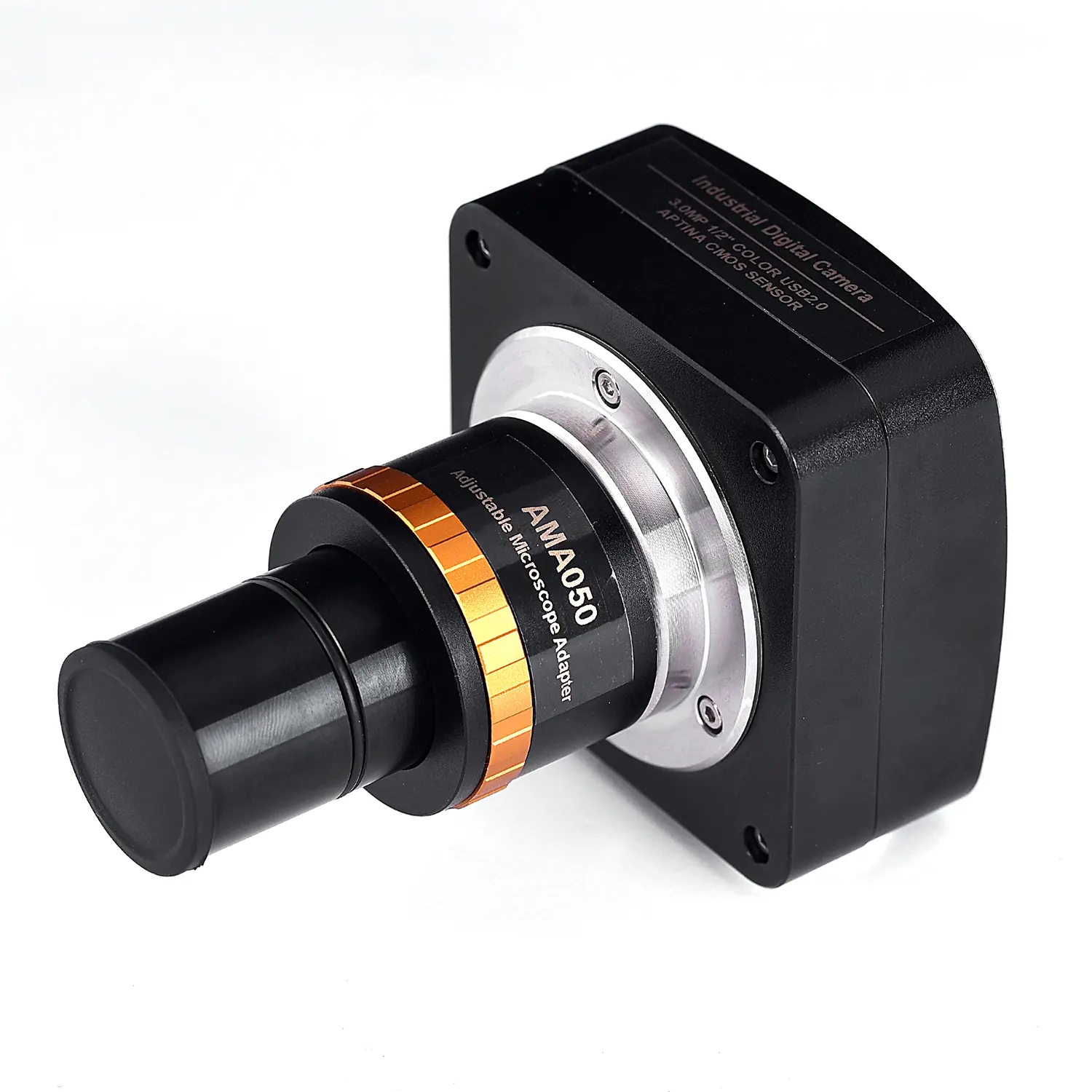

C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera
C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera
C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera
C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera
C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera
C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera

C2CMOS USB2.0 SONY C-mount Stereo Microscope Camera

C2CMOS USB2.0 SONY C-mount stereo microscope cameras from Nanjing AMADA Instrument are industrial-grade imaging solutions for biological, metallurgical, and electronics inspection. The series supports multiple sensor options, USB2.0 high-speed data transfer, and integration with microscopes via C-mount interface. Cameras feature built-in IR-cut filters, adjustable exposure, and SDK support across Windows, Linux, macOS, and Android platforms.

  • Multiple sensor options (12M to 2.1M) with C-mount compatibility for direct integration with stereo and biological microscopes
  • USB2.0 high-speed interface enables 20–38 FPS at full resolution depending on model
  • Built-in IR-cut filter protects sensor and ensures accurate color reproduction under visible light
  • SDK support for Windows, Linux, macOS, and Android with native C/C++, C#, Python, Java, DirectShow, and Twain interfaces
  • Rugged aluminum alloy body with no moving parts ensures long-term reliability in industrial environments
Request A Quote +86-15195807515

Technical features

  • Sensor models: IMX577(C), IMX274(C), AR0521(C), IMX335(C), Aptina(C), IMX307(C)
  • Pixel sizes: 1.55×1.55 to 2.9×2.9 μm
  • Sensor sizes: 1/2.3“ to 1/2.8“
  • Dynamic range: 70dB to 73dB
  • SNRmax: 40dB to 43dB
  • Frame rates: 20–38 FPS depending on resolution and model
  • Exposure time: 0.1–2000 ms (0.1–1000 ms for some models)
  • IR-cut filter included for visible light imaging (380–650nm)

Who it is for

  • Electronics manufacturers integrating cameras into inspection benches
  • Research labs upgrading analog microscopes to digital imaging systems
  • Distributors sourcing industrial microscope cameras for OEM or resale
  • Procurement engineers specifying camera compatibility with existing C-mount microscopes

Specifications

ModelsC2CMOS12000KPA / C2CMOS08300KPA / C2CMOS05100KPA / C2CMOS05100KPB / C2CMOS03100KPA / C2CMOS02100KPA
SensorIMX577(C) / IMX274(C) / AR0521(C) / IMX335(C) / Aptina(C) / IMX307(C)
Sensor Size1/2.3“ (5.95×4.71) / 1/2.5“ (6.22×3.50) / 1/2.5“ (5.70×4.28) / 1/2.8“ (5.18×3.89) / 1/2.5“ (5.73×4.3) / 1/2.8“ (5.73×4.3)
Pixel Size1.55×1.55 μm / 1.62×1.62 μm / 2.2×2.2 μm / 2.0×2.0 μm / 2.8×2.8 μm / 2.9×2.9 μm
Responsivity250LSB / 236mV / 18.8ke-/lus / 505mV / 18.8ke-/lus / 1300mV
Dynamic Range70dB / 70dB / 73dB / 70dB / 73dB / 73dB
SNRmax43dB / 43dB / 40dB / 43dB / 40dB / 43dB
Frame Rate20@3840×3040 / 30@3840×2160 / 30@2592×1944 / 26@2592×1944 / 30@2048×1536 / 38@1920×1080
Exposure Time0.1–2000 ms / 0.1–2000 ms / 0.1–1000 ms / 0.1–2000 ms / 0.1–1000 ms / 0.1–2000 ms
Spectral Range380–650nm (with IR-cut filter)
Power SupplyDC 5V via PC USB port
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to 60°C
Operating Humidity30–80% RH
Storage Humidity10–60% RH
InterfaceUSB2.0 High-speed
MountC-mount
SDK SupportWindows / Linux / macOS / Android (C/C++, C#, VB.NET, Python, Java, DirectShow, Twain)

Use guide

  • Select camera model based on required resolution, frame rate, and sensor size
  • Confirm C-mount compatibility with the target microscope before purchase
  • Use SDK to integrate camera into custom inspection software or control system
  • Adjust exposure time and white balance settings for optimal image quality under ambient lighting

FAQ

What is the interface type?
USB2.0 High-speed interface, powered via PC USB port.
Can I use this with a stereo microscope?
Yes. The C-mount interface allows direct attachment to most stereo and biological microscopes.
What SDKs are available?
Native SDKs for Windows, Linux, macOS, and Android in C/C++, C#, VB.NET, Python, Java, DirectShow, and Twain.
Is there an IR-cut filter?
Yes. All models include a built-in IR-cut filter to prevent color distortion in visible light imaging.
What is the exposure range?
0.1–2000 ms (0.1–1000 ms for C2CMOS05100KPA and C2CMOS03100KPA).
What power source is required?
DC 5V via PC USB port. No external power supply needed.
Who manufactures this camera?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
