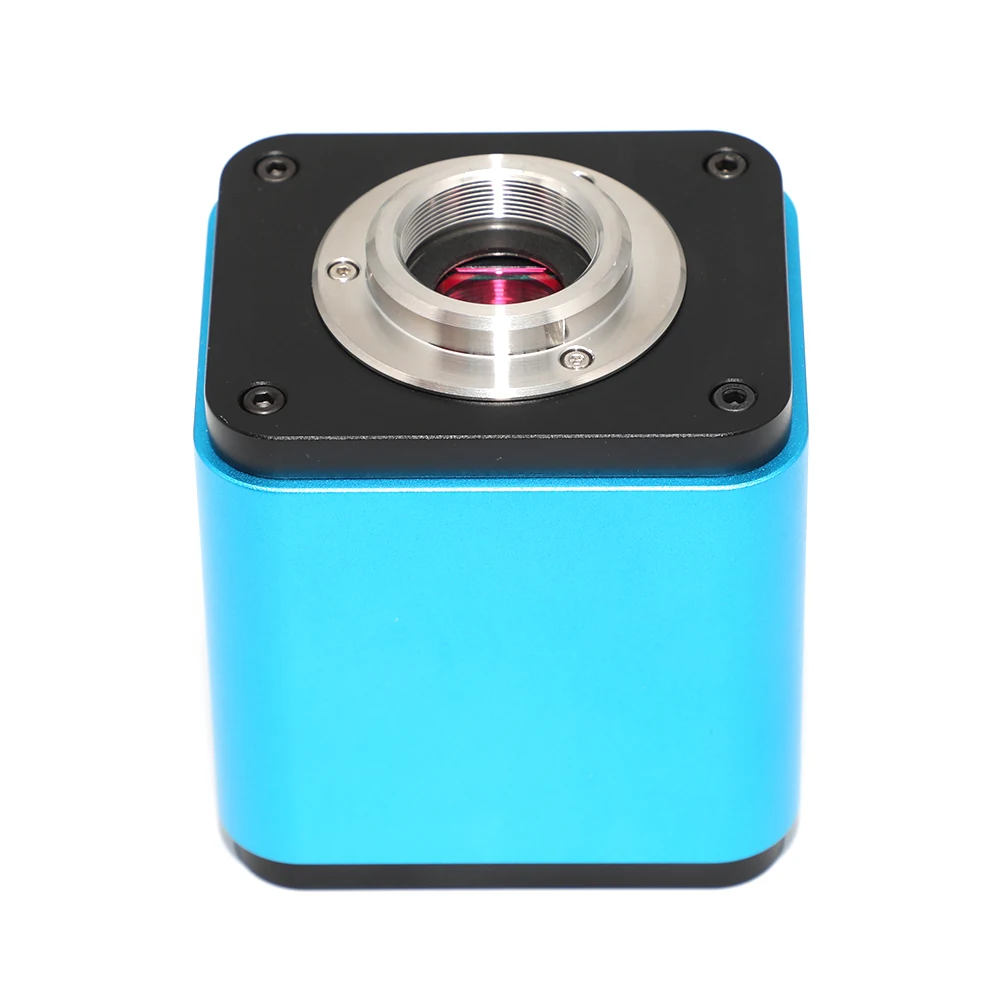

XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera
XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera

XCAM1080PHB/D HDMI+WiFi Industrial Microscope Camera

XCAM1080PHB/D is a C-mount industrial microscope camera with HDMI and WiFi output, designed for real-time imaging and documentation in electronics, biomedical, and industrial inspection. The camera supports 1080P resolution at 60 fps via HDMI and 25 fps via WiFi, with Sony IMX178, IMX185, or IMX249 sensors, and offers adjustable exposure, gain, white balance, and color correction. It includes SD card recording, USB mouse control, and compatibility with Windows, Linux, macOS, and Android platforms.

  • Dual output via HDMI (60 fps) and WiFi (25 fps) for flexible integration with displays, recorders, and software
  • Supports 1080P resolution at full frame rate (HDMI) and 25 fps (WiFi) with low latency and high sensitivity
  • Adjustable exposure from 0.03ms to 918ms for high dynamic range in varying lighting conditions
  • SD card recording with JPEG stills and ASF video (1080P 30fps) for offline documentation
  • Remote control via USB mouse or ToupView/ToupLite software on Windows, Linux, macOS, and Android
Request A Quote +86-15195807515

Technical features

  • Sensor options: Sony IMX178 (1/1.8″, 2.4×2.4 μm), IMX185 (1/1.9″, 3.75×3.75 μm), IMX249 (1/1.2″, 5.86×5.86 μm)
  • Resolution: 1920×1080 (1080P), 5M (2592×1944) or 2M (1920×1080) depending on model
  • HDMI output: 60 fps at 1920×1080; WiFi output: 25 fps at 1920×1080
  • Exposure range: 0.03ms to 918ms (PHB), 0.06ms to 918ms (PHD), 0.043ms to 1000ms (PHE)
  • Gain, white balance, color adjustment, sharpness, and denoising controls via software
  • SD card support: up to 8GB, JPEG stills and ASF video recording (1080P 30fps)
  • USB mouse control for embedded XCamView UI; supports ToupView/ToupLite on Windows/Linux/macOS/Android
  • WiFi performance: 802.11n, 150Mbps, 20dBm RF power, up to 6 connected devices

Who it is for

  • Electronics manufacturers integrating cameras into inspection benches
  • Distributors supplying industrial microscope camera solutions for OEM or end-user systems
  • Research labs requiring remote control and image capture from microscope-mounted cameras
  • Procurement engineers sourcing cameras with dual HDMI/WiFi output and SD recording

Specifications

ModelsXCAM1080PHB / XCAM1080PHD / XCAM1080PHE
SensorSony IMX178 (C) / IMX185 (C) / IMX249 (C, GS)
Sensor Size1/1.8″ (6.22×4.67 mm) / 1/1.9″ (7.20×4.05 mm) / 1/1.2″ (11.25×6.33 mm)
Pixel Size2.4×2.4 μm / 3.75×3.75 μm / 5.86×5.86 μm
Sensitivity425mv (PHB), 1120mv (PHD), 1016mv (PHE) with 1/30s exposure
Dark Signal0.15mv with 1/30s exposure
HDMI FPS/Resolution60/1920×1080
WiFi FPS/Resolution25/1920×1080
Exposure Range0.03ms–918ms (PHB), 0.06ms–918ms (PHD), 0.043ms–1000ms (PHE)
Binning1×1
InterfaceHDMI, USB, SD card, DC 12V
Power SupplyDC 12V/1A adapter
Operating Temperature-10°C to 50°C
Storage Temperature-20°C to 60°C
Operating Humidity30–80% RH
Storage Humidity10–60% RH

Use guide

  • Select model (PHB/PHD/PHE) based on required sensitivity, resolution, and sensor size
  • Use HDMI output for real-time 60 fps display; use WiFi for remote access and control
  • Enable SD card recording for offline image and video logging without PC dependency
  • Connect via USB mouse to control XCamView UI for exposure, gain, white balance, and image capture
  • Use ToupView/ToupLite software on Windows, Linux, macOS, or Android for advanced control and recording

FAQ

What is the difference between XCAM1080PHB, PHD, and PHE?
PHB uses Sony IMX178 (1/1.8″, 2.4μm), PHD uses IMX185 (1/1.9″, 3.75μm), PHE uses IMX249 (1/1.2″, 5.86μm); each offers different sensitivity, resolution, and dynamic range.
Can I record video directly to SD card?
Yes. The camera supports ASF format video recording at 1080P 30fps on an 8GB SD card.
What is the maximum frame rate on HDMI and WiFi?
HDMI: 60 fps at 1920×1080; WiFi: 25 fps at 1920×1080.
Is the camera compatible with Linux and macOS?
Yes. ToupView/ToupLite software supports Windows, Linux, macOS, and Android platforms.
What power supply is required?
DC 12V/1A adapter. Do not use lower voltage or current sources.
