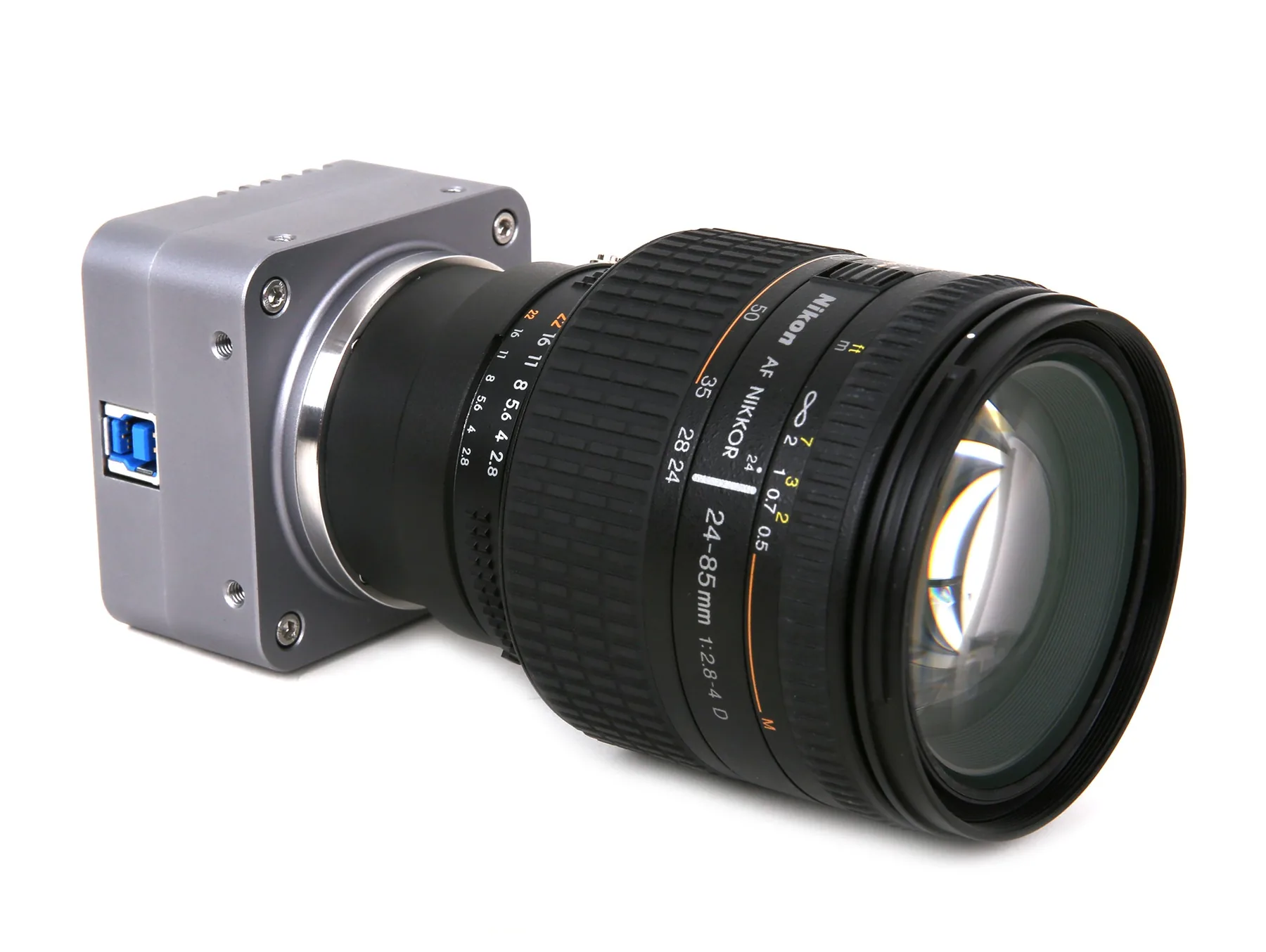

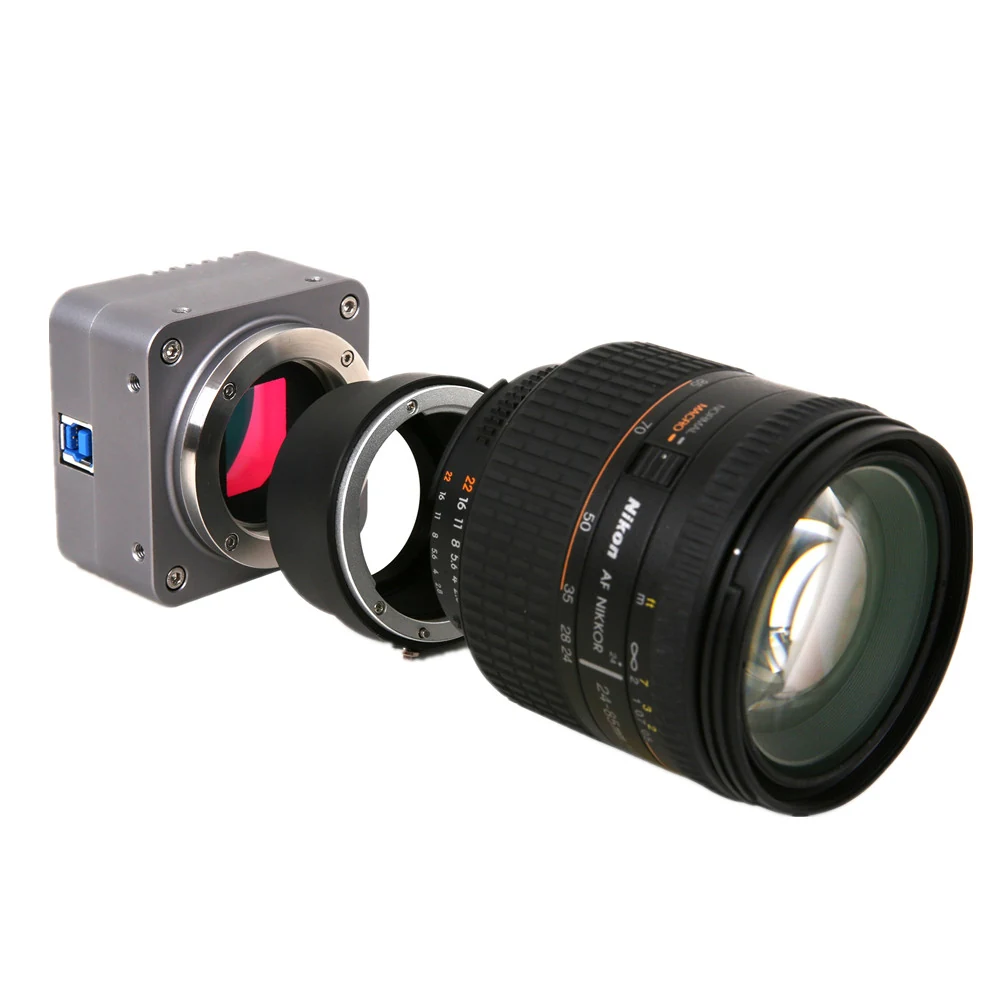

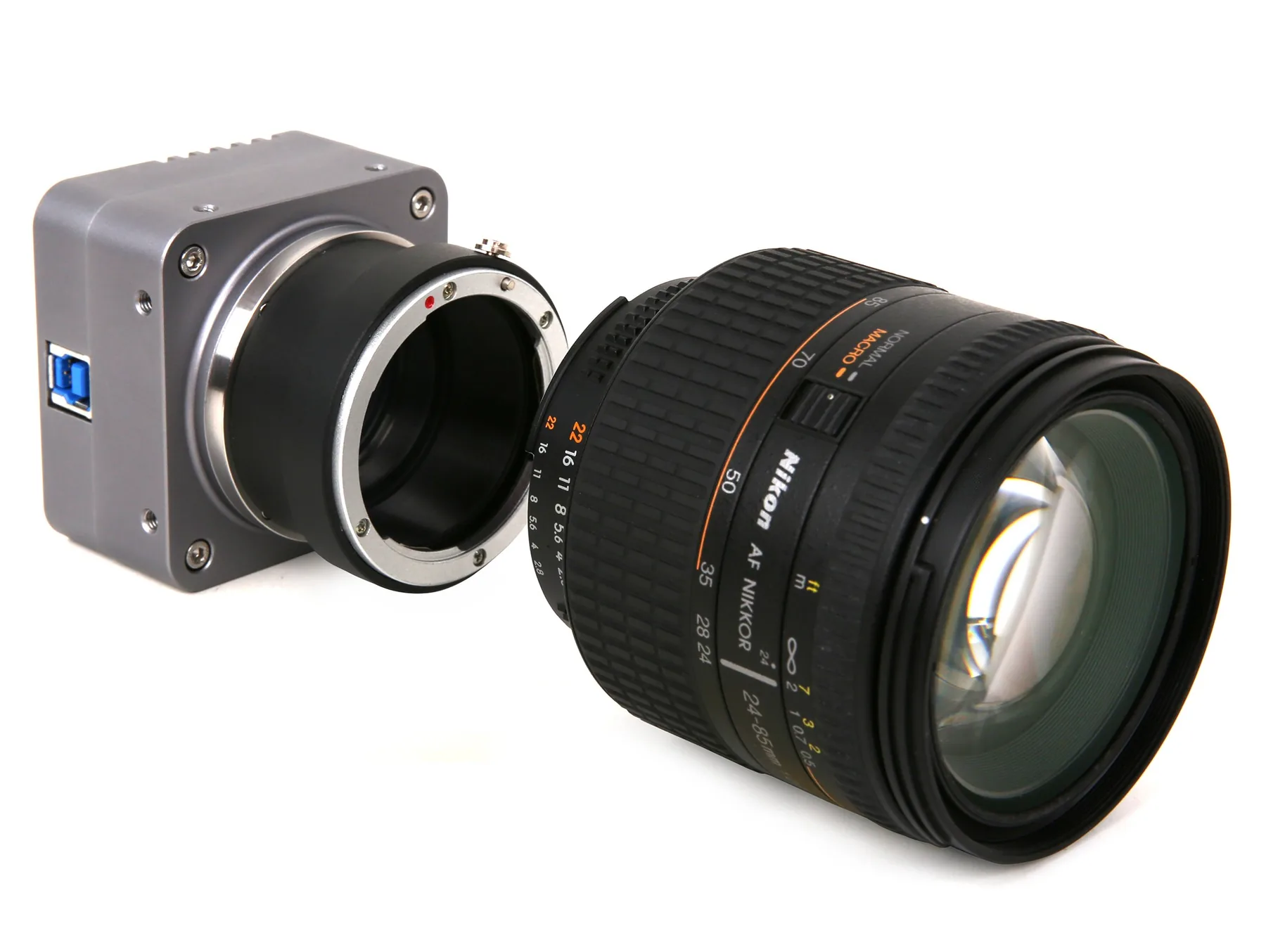

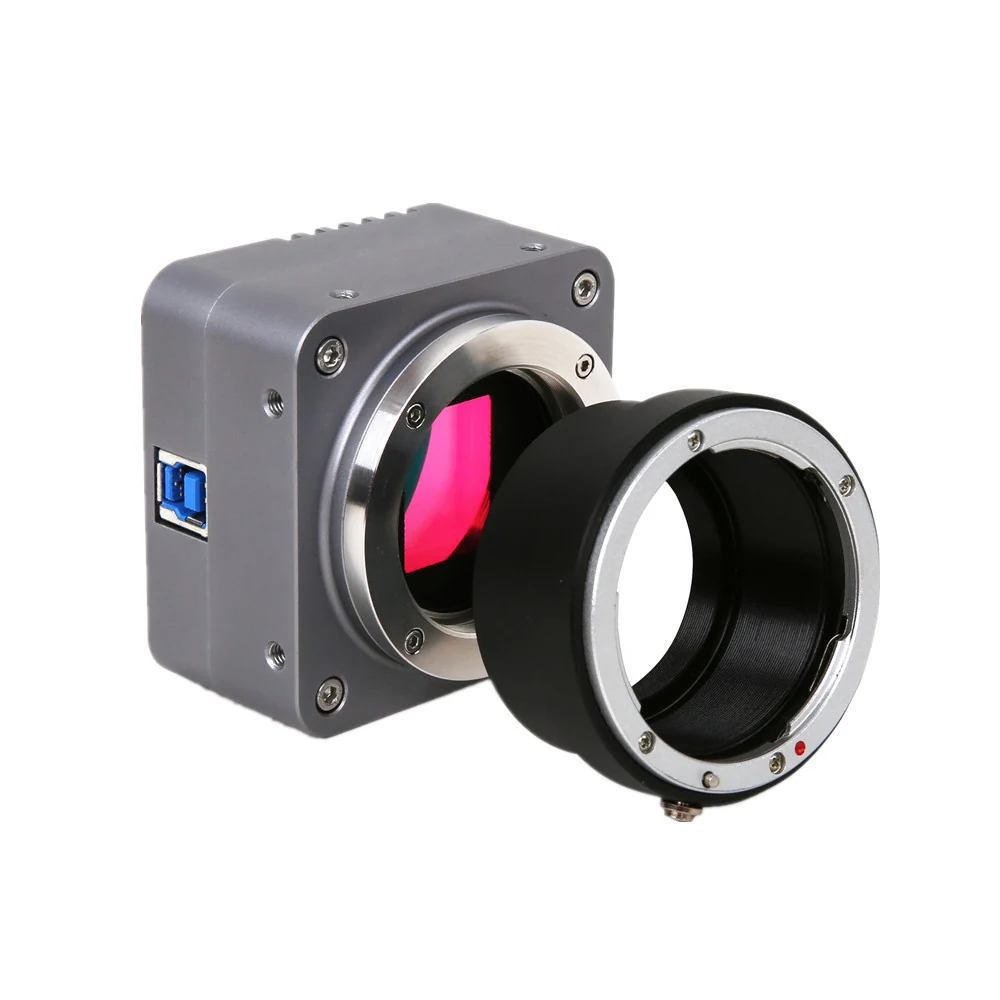

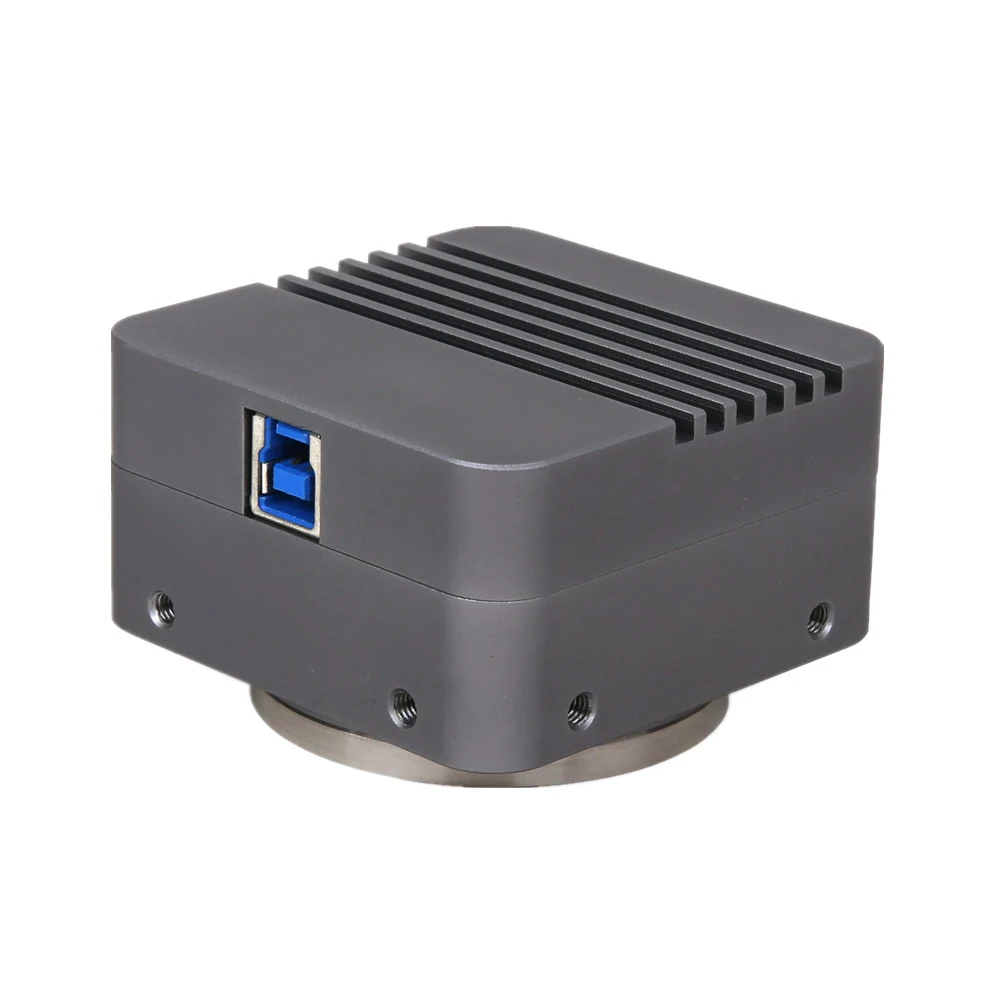

BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera
BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera
BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera
BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera
BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera
BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera

BigEye M42 and M42 to C or F Mount USB3.0 CMOS Microscope Camera

BigEye M42 to C or F Mount USB3.0 CMOS Microscope Camera is a high-speed, high-sensitivity digital imaging solution for biological, metallurgical, and electronics inspection microscopes. The series supports 4.2M and 10.3M sensor options with global shutter, monochrome or color output, and flexible mounting via M42, C, or F mount adapters. Designed for integration with USB3.0 systems, it enables real-time imaging and data capture with exposure times from 0.01ms to 60s.

  • Supports 4.2M and 10.3M sensor options with high quantum efficiency and low dark signal
  • M42, C, or F mount adaptability for direct integration with existing microscope bodies
  • High frame rates up to 86 FPS at 1360×720 resolution for dynamic inspection tasks
  • Flexible exposure control from 0.01ms to 60s for low-light and high-speed applications
  • Multiple output formats including RAW12, 12bit, and 16bit HDR for advanced image processing
Request A Quote +86-15195807515

Technical features

  • Sensor options: 10.3M IMX294 (4/3”) or 4.2M GSENSE2020e/M, GSENSE2020BSI (1.2”) or GSENSE400BSI (2.0”)
  • Pixel size: 4.63μm (IMX294), 6.5μm (GSENSE2020e/M), 11μm (GSENSE400BSI)
  • Global shutter (GS) for motion-free imaging
  • Monochrome (M) or color (C) output modes available
  • Peak quantum efficiency up to 95.3% @560nm
  • Dark signal as low as 0.12mv with 1/30s exposure
  • Frame rates up to 86 FPS at 1360×720 resolution
  • Exposure time range: 0.01ms to 60s

Who it is for

  • Electronics manufacturers integrating cameras into inspection benches
  • Research labs upgrading analog microscopes to digital imaging systems
  • Distributors offering complete microscope camera solutions with mounting flexibility
  • Automation engineers selecting embedded-compatible cameras for machine vision

Specifications

ModelsBigEye4200KMA / BigEye4200KMB / BigEye4200KMC / BigEye4200KMD / MIPI4200KMB / BigEye10000KPA
SensorIMX294 (10.3M, 4/3”), GSENSE2020e (4.2M, 1.2”), GSENSE2020BSI (4.2M, 1.2”), GSENSE400BSI (4.2M, 2.0”)
Sensor Size4/3” (17.47×12.86 mm), 1.2” (13.31×13.31 mm), 2.0” (22.53×22.53 mm)
Pixel Size4.63μm, 6.5μm, 11μm
Output TypeMonochrome (M), Color (C)
Peak QE64.2% @595nm (GSENSE2020e), 93.7% @550nm (GSENSE2020BSI), 95.3% @560nm (GSENSE400BSI)
Dark Signal0.12mv (IMX294), 7 (e-/((W/m2).s)) (GSENSE2020e), 8 (e-/((W/m2).s)) (GSENSE2020BSI)
Max Frame Rate86 FPS @1360×720, 44 FPS @2048×2048 (16bit)
Exposure Range0.01ms ~ 60s
Binning1×1, 2×2, 3×3
Data OutputRAW12, 12bit, 16bit HDR (FPGA combined)
MountingM42, C, F mount
InterfaceUSB3.0, MIPI D-PHY CSI-2 1Ch 4Lane
Power Consumption2.5–3.0W

Use guide

  • Select sensor size and resolution (4.2M vs 10.3M) based on required field of view and detail level
  • Choose monochrome or color output depending on application (e.g., color for tissue, monochrome for metal)
  • Match mounting adapter (M42, C, or F) to the microscope's lens thread
  • Confirm interface (USB3.0 or MIPI) with host system (PC or embedded processor)
  • Set exposure time and binning based on lighting conditions and motion speed

FAQ

What mounting options are available?
M42, C, or F mount adapters are available for direct attachment to microscope bodies.
Can I use this camera with an embedded system?
Yes. MIPI4200KMB supports MIPI D-PHY CSI-2 1Ch 4Lane interface for HiSilicon and Road chip systems.
What is the maximum frame rate?
Up to 86 FPS at 1360×720 resolution, 44 FPS at 2048×2048 with 12bit or 16bit output.
Does it support high dynamic range?
Yes. BigEye4200KMD supports 16bit HDR output via FPGA combination of HG and LG 12bit formats.
What is the exposure time range?
0.01ms to 60 seconds, suitable for both fast and low-light applications.
