AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter
AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter
AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter
AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter
AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter

AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter

The AMA 23.2mm Eyepiece to Adjustable Microscope Eyepiece Adapter series connects microscope eyepieces to digital cameras via C-mount. Available in four models (AMA037 to AMA100) with magnifications from 0.37X to 1X, each matches specific sensor sizes from 1/4" to 1.1". Designed for manual focus and parfocal alignment with the eyepiece, the adapter ensures consistent image positioning across optical paths.

  • Matches eyepiece to camera with parfocal alignment for consistent focus between optical and digital paths
  • Adjustable magnification (0.37X to 1X) allows field of view matching to sensor size
  • C-mount output enables direct connection to digital microscope cameras
  • Supports multiple sensor sizes from 1/4" to 1.1" across four models
  • Manual focus adjustment maintains control during image capture
Request A Quote +86-15195807515

Technical features

  • Dia.23.2mm eyepiece tube to C-mount interface

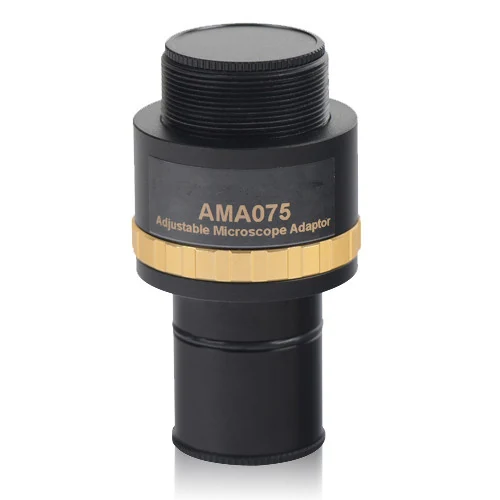

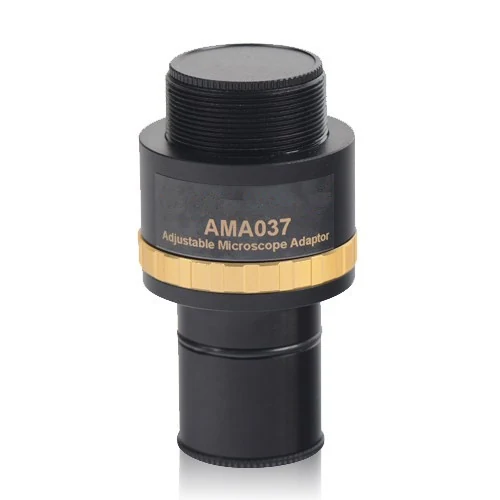

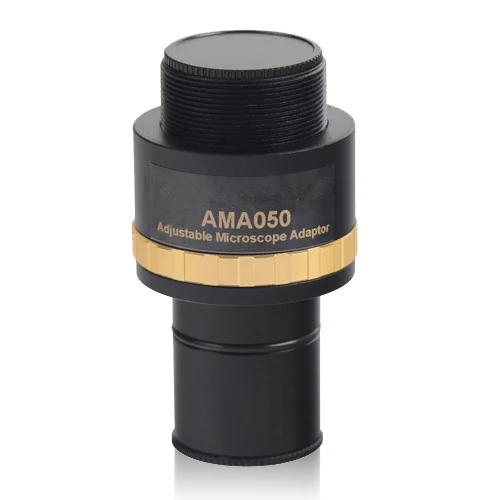

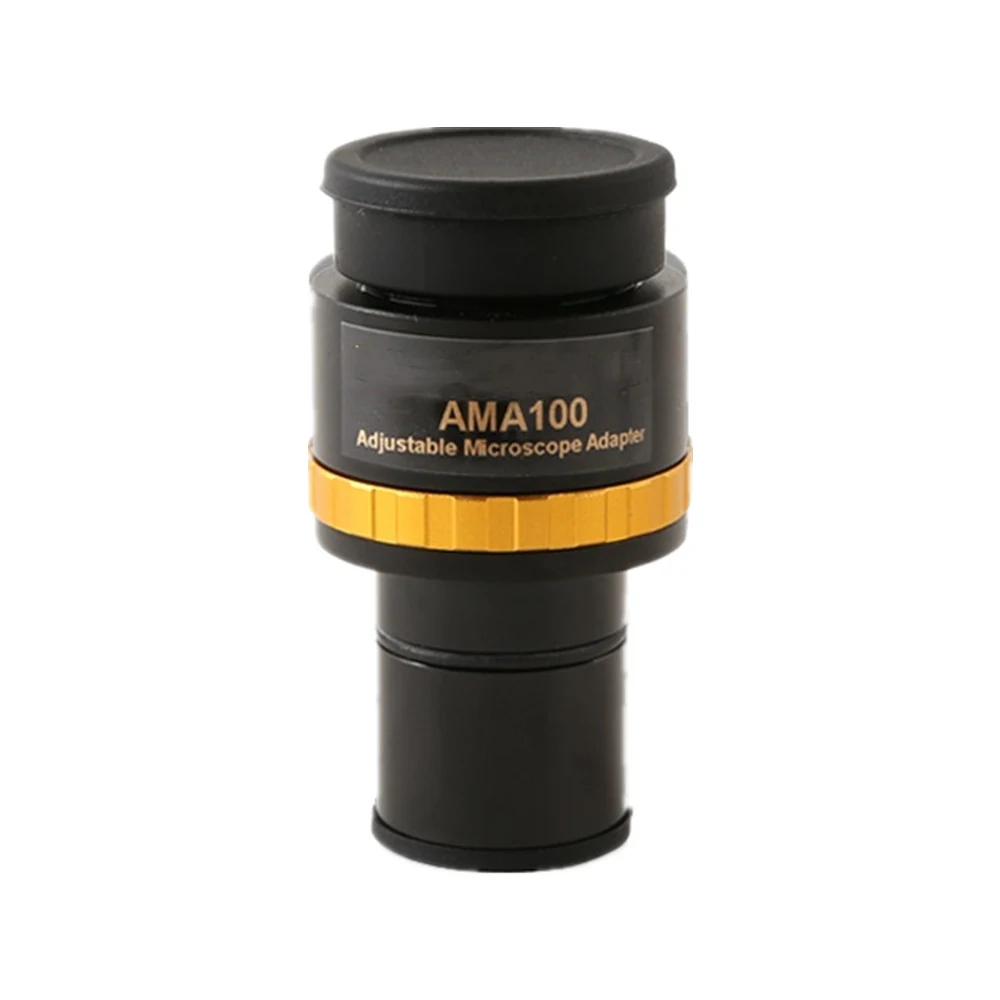

  • Magnification options: 0.37X (AMA037), 0.50X (AMA050), 0.75X (AMA075), 1X (AMA100)
  • Sensor size compatibility: 1/4"~1/3" (AMA037), 1/2"~2/3" (AMA050), 1/1.8"~1" (AMA075), 1"~1.1" (AMA100)
  • Manually focusable design with parfocal alignment to the eyepiece
  • Field diameter: 18 mm for all models
  • Adjustable focus ring for fine-tuning image sharpness
  • C-mount standard interface for direct camera attachment

Who it is for

  • Procurement engineers sourcing microscope camera integration components
  • Lab managers upgrading analog microscopes to digital imaging systems
  • Distributors offering complete microscope imaging solutions
  • Manufacturers requiring consistent image capture in quality control

Specifications

ModelAMA037 / AMA050 / AMA075 / AMA100
Magnification0.37X / 0.50X / 0.75X / 1X
Eyepiece Tube Diameter23.2 mm
C-Mount InterfaceYes
Sensor Size Compatibility1/4"~1/3" (AMA037), 1/2"~2/3" (AMA050), 1/1.8"~1" (AMA075), 1"~1.1" (AMA100)
Focus TypeManual
Parfocal with EyepieceYes
Field Diameter18 mm

Use guide

  • Identify the sensor size of your microscope camera
  • Match the sensor size to the correct adapter model (AMA037 to AMA100)
  • Attach the adapter to the microscope eyepiece and connect the camera via C-mount
  • Adjust focus manually to align image sharpness with the eyepiece

FAQ

Which adapter do I need for a 1/2" sensor camera?
Use AMA050, which fits 1/2"~2/3" sensor sizes.
Can I use this adapter with any microscope eyepiece?
Yes, as long as the eyepiece has a 23.2 mm outer diameter and standard C-mount camera interface.
Is the focus automatic or manual?
Manual focus only. The focus ring is adjustable for image sharpness.
What does 'parfocal with the eyepiece' mean?
The adapter maintains focus alignment so the image remains sharp when switching between eyepiece and camera views.
How do I ensure full field coverage?
The sensor size must be smaller than the available field size for the selected model. Our experts can help confirm compatibility.
