A400 LCD Biological Stereo Metallurgical Fluorescent Microscope
A400 LCD Biological Stereo Metallurgical Fluorescent Microscope
A400 LCD Biological Stereo Metallurgical Fluorescent Microscope
A400 LCD Biological Stereo Metallurgical Fluorescent Microscope

A400 LCD Biological Stereo Metallurgical Fluorescent Microscope

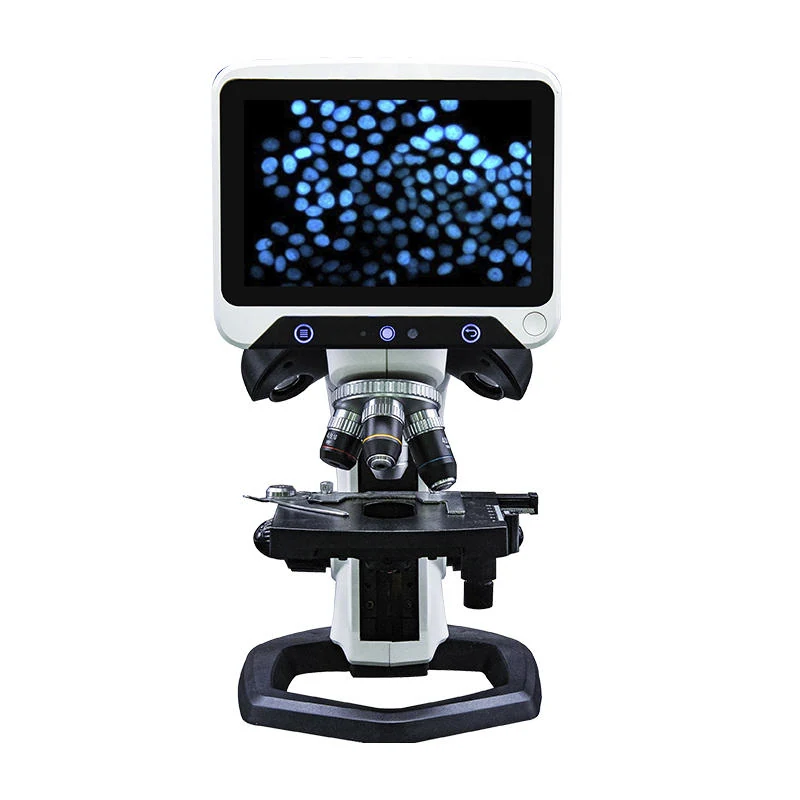

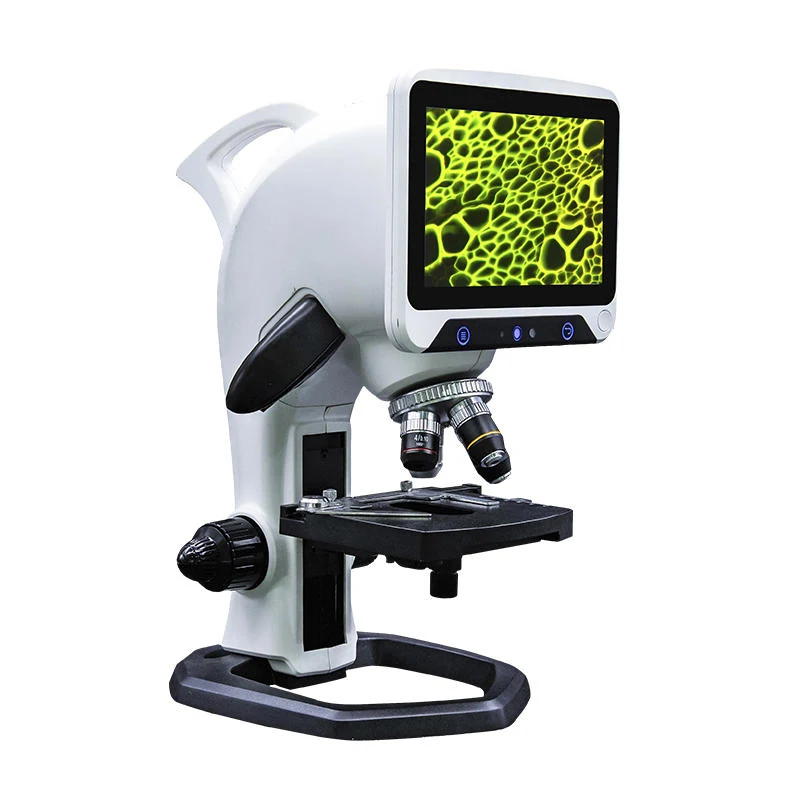

A400 is an integrated digital LCD biological, stereo, metallurgical, and fluorescent microscope from Nanjing AMADA Instrument Co., Ltd. Designed for research in biology, cytology, genetics, and immunology, it features infinite plan achromatic objectives, Epi-illumination, and a built-in HD digital imaging system with 5 million effective pixels. The unit includes a 7-inch HD LCD screen, 16GB storage, and supports 1080p video output via HDMI.

  • Integrated digital imaging with 5MP photo resolution and 720p/30fps video output for documentation and analysis
  • 7-inch HD LCD screen with touch control for direct observation and operation without external monitor
  • Supports multiple microscopy modes: biological, stereo, metallurgical, and fluorescence with Epi-illumination
  • Built-in 10400mAh battery enables portable operation in field or mobile labs
  • Digital magnification up to 1500x with objective lenses from 2x to 100x and 3x digital zoom
Request A Quote +86-15195807515

Technical features

  • Model A400 with integrated 7-inch HD LCD screen (1280×800 resolution)
  • Built-in digital image module with 5 million effective pixels and 5MP photo resolution
  • Video resolution 720p/30fps; supports HDMI data output
  • Objective lenses: 2x, 4x, 10x, 40x, 100x; total magnification range 30x–1500x
  • Digital magnification up to 3x; combined magnification up to 1500x
  • Stage with double-layer movement: left/right and forward/backward
  • Built-in 10400mAh battery for extended portable use
  • Intelligent shutdown function to conserve power

Who it is for

  • Research institutions in life sciences and medical diagnostics
  • Field technicians in agriculture and public health
  • Educational labs in universities and technical colleges
  • Industrial quality control teams in electronics and materials science
  • Distributors sourcing all-in-one digital microscopes for scientific and industrial buyers

Specifications

ModelA400
LCD Screen Size7 inches
Screen Resolution1280×800
Photo Resolution5M
Video Resolution720p/30fps
Data OutputHDMI
Built-in Battery10400mAh
Objective Lenses2x, 4x, 10x, 40x, 100x
Total Magnification Range30x–1500x
Digital Magnification3x
Storage Capacity16GB
Measurement FunctionYes
Intelligent ShutdownYes
Sound OutputStereo (left/right channel)

Use guide

  • Select the appropriate objective lenses based on required magnification and sample type
  • Use the multi-functional key to power on/off or turn screen off during observation
  • Connect to external display via HDMI for larger screen viewing or recording
  • Calibrate scale using the free professional software for accurate measurements
  • Enable intelligent shutdown to extend battery life during idle periods

FAQ

What is the total magnification range?
30x to 1500x, combining optical and digital magnification with objectives from 2x to 100x.
Can I use this microscope without connecting to a computer?
Yes. The A400 has a built-in 7-inch LCD screen and storage, allowing full operation without external devices.
What is the battery life?
The 10400mAh battery supports extended portable use; exact duration depends on usage and screen brightness settings.
Does it support fluorescence imaging?
Yes. The A400 includes Epi-illumination for fluorescence observation in biological and metallurgical applications.
Can I export images or videos?
Yes. The microscope supports HDMI output and has 16GB internal storage for saving photos and videos.
