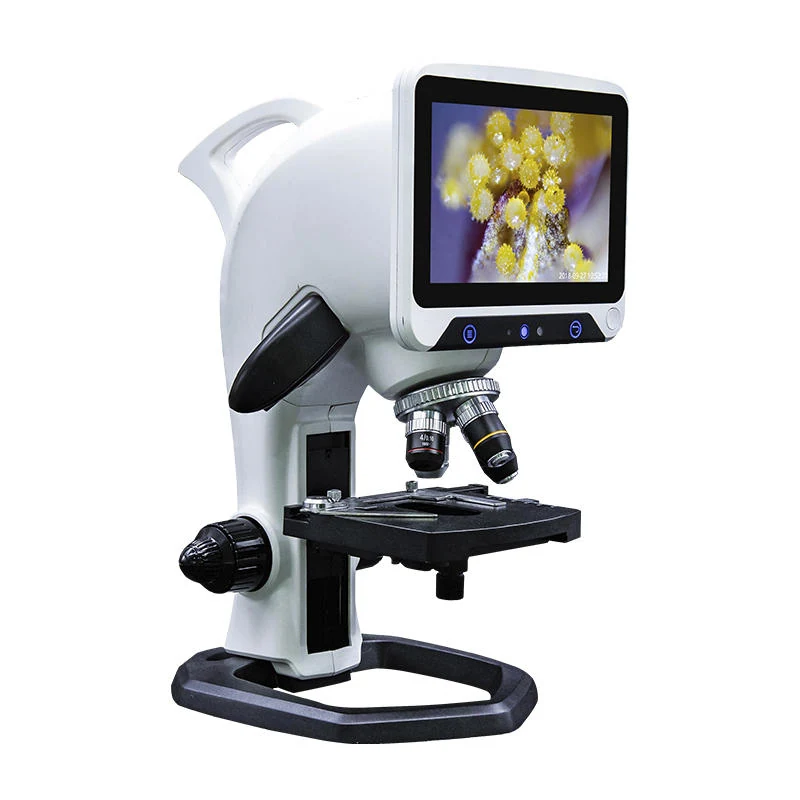

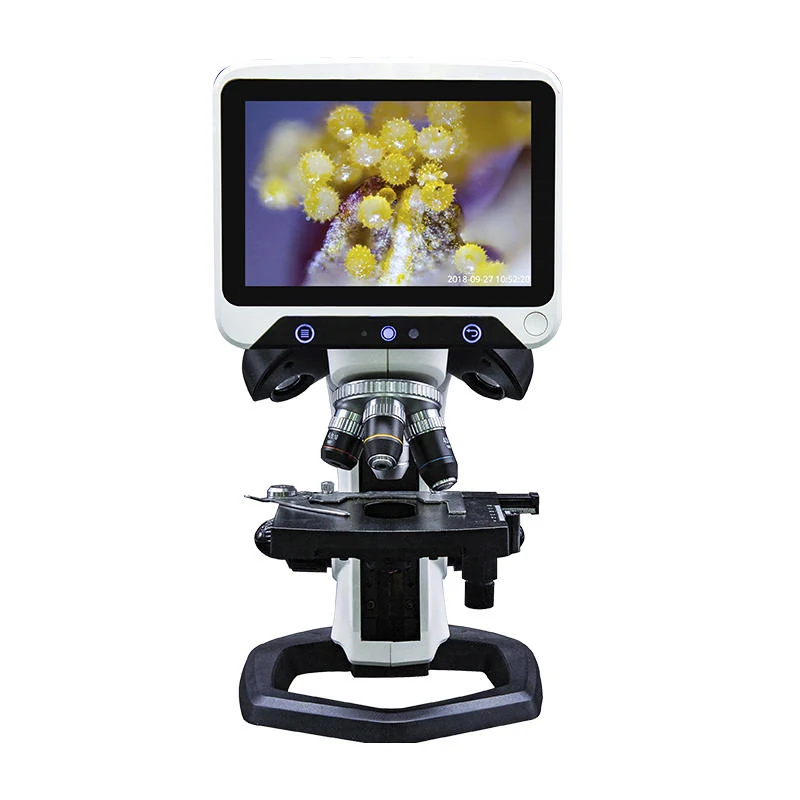

A200 7 Inches 5MP HD LCD Biological Stereo Digital Microscope
A200 7 Inches 5MP HD LCD Biological Stereo Digital Microscope
A200 7 Inches 5MP HD LCD Biological Stereo Digital Microscope
A200 7 Inches 5MP HD LCD Biological Stereo Digital Microscope

A200 7 Inches 5MP HD LCD Biological Stereo Digital Microscope

A200 is a biological stereo digital microscope from Nanjing AMADA Instrument Co., Ltd. featuring a 7-inch HD LCD screen, 5MP photo resolution, and built-in HD imaging with 720p/30fps video output. It supports biological and stereo observation with objective lenses of 2x, 4x, 10x, and 40x, delivering magnification from 30x to 600x. The unit includes a double-layer stage for precise sample positioning, intelligent shutdown, and measurement functions via free professional software.

  • 7-inch HD LCD screen with 1280×800 resolution for clear real-time viewing without external monitor
  • Built-in 5MP camera and 720p/30fps video capture for documentation and teaching
  • Integrated measurement software with scale calibration for accurate sample analysis
  • Double-layer stage enables fine manual movement in two axes for sample alignment
  • 10400mAh battery supports extended portable use without constant power
  • HDMI output allows connection to external displays or recording devices
Request A Quote +86-15195807515

Technical features

  • 7-inch HD LCD screen with resolution 1280×800
  • Built-in 5MP photo resolution and 720p/30fps video recording
  • Objective lenses: 2x, 4x, 10x, 40x; total magnification range 30x–600x
  • Digital magnification up to 3x (combined with optical), adjustable via software
  • Double-layer stage for left-right and forward-backward movement
  • Multi-functional key: short press turns screen off, long press powers on/off
  • HDMI output for external display or recording
  • Built-in stereo SoundBox with left and right channel audio

Who it is for

  • Educational institutions teaching biology or life sciences
  • Clinical labs conducting basic biological sample checks
  • Field technicians requiring portable digital microscopy
  • Distributors sourcing all-in-one digital microscopes for training or inspection
  • Importers specifying integrated digital microscopes with measurement and display

Specifications

ModelA200
Screen Size7 inches
Screen Resolution1280×800
Photo Resolution5MP
Video Resolution720p/30fps
Data OutputHDMI
Built-in SoundBoxStereo (left and right channels)
Intelligent ShutdownYes
Measurement FunctionYes
Objective Lenses2x, 4x, 10x, 40x
Magnification Range30x–600x
Digital MagnificationUp to 3x
Battery Capacity10400mAh
Stage TypeDouble-layer, movable left-right and forward-backward
Light SourceLateral reflection
SoftwareFree professional observation software with scale calibration and measurement

Use guide

  • Power on by pressing the multi-functional key for a long duration
  • Use the double-layer stage to position samples precisely before observation
  • Switch objectives using the rotating nosepiece to adjust magnification
  • Enable measurement function via the free software and calibrate using a known scale
  • Connect to external display via HDMI when larger viewing or recording is needed

FAQ

What is the screen resolution?
1280×800 pixels on the 7-inch HD LCD screen.
Can I measure sample sizes?
Yes. The free professional software includes scale calibration and measurement tools.
How long does the battery last?
The 10400mAh battery supports extended use; exact duration depends on usage and brightness settings.
Does it support external display?
Yes. HDMI output allows connection to monitors, projectors, or recording devices.
What type of light source is used?
Lateral reflection light source enhances surface detail and physical object visibility.
