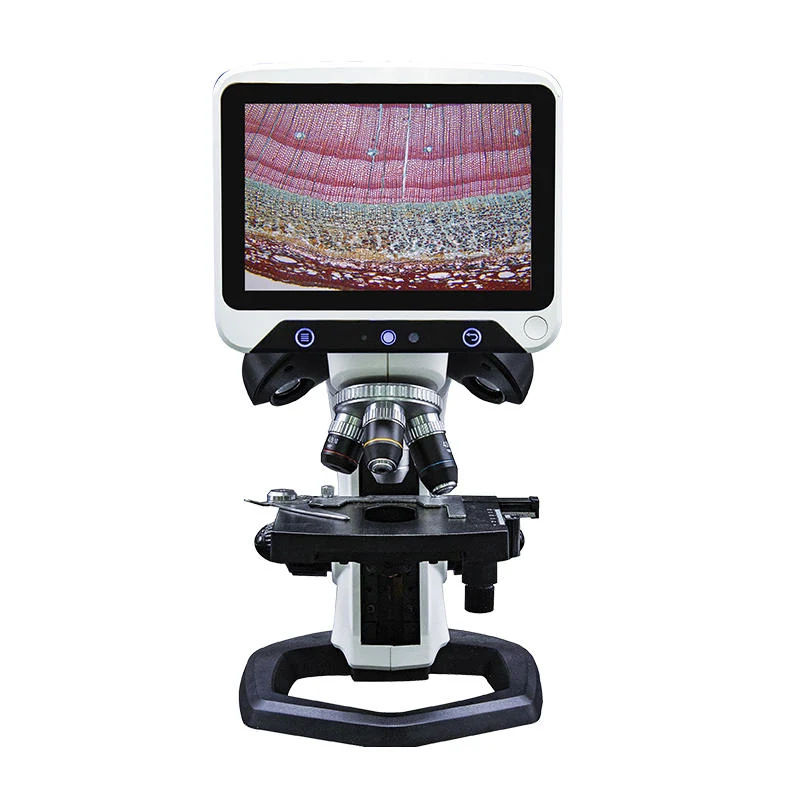

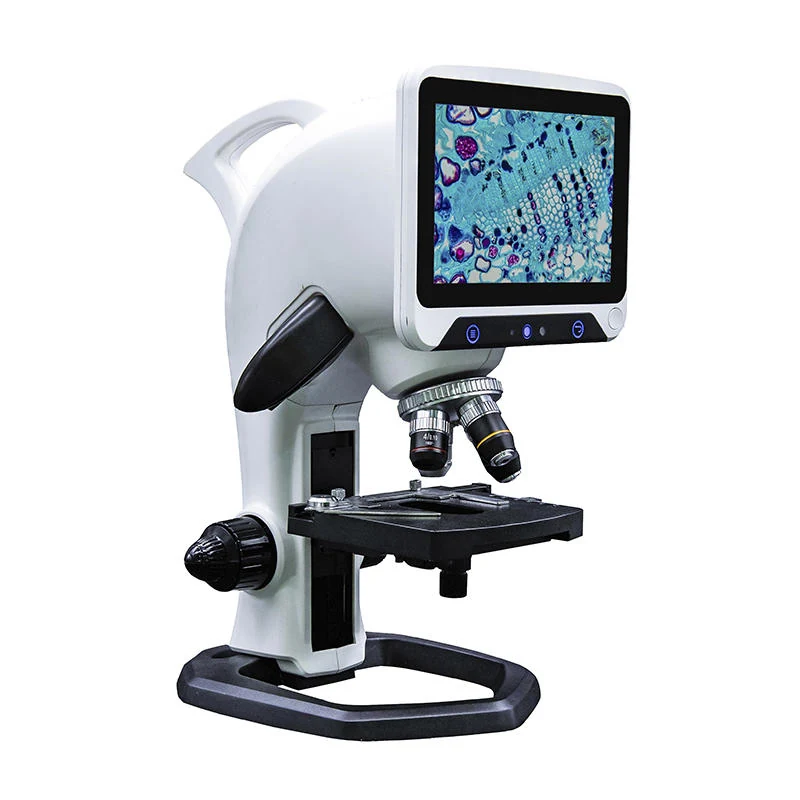

A100 7 Inches 2MP HD LCD Biological Stereo Digital Microscope
A100 7 Inches 2MP HD LCD Biological Stereo Digital Microscope
A100 7 Inches 2MP HD LCD Biological Stereo Digital Microscope
A100 7 Inches 2MP HD LCD Biological Stereo Digital Microscope

A100 7 Inches 2MP HD LCD Biological Stereo Digital Microscope

A100 is a 7 inches 2MP HD LCD biological stereo digital microscope from Nanjing AMADA Instrument Co., Ltd. designed for educational, clinical, and basic research applications. It features a built-in HD image module with 2 million effective pixels, 720p/30fps video output, and a touchable LCD screen. The microscope supports precise measurement via free professional software and includes a lateral reflection light source for enhanced observation of physical specimens.

  • 7 inches HD LCD screen with 1280×800 resolution for clear real-time viewing
  • Built-in 2MP photo and 720p/30fps video capture for documentation and teaching
  • Lateral reflection light source improves visibility of physical specimens and surface details
  • Integrated measurement function with scale calibration for accurate sample analysis
  • Double-layer stage enables precise sample positioning in two axes
Request A Quote +86-15195807515

Technical features

  • 7 inches HD LCD screen with 1280×800 resolution
  • 2MP photo resolution; 720p/30fps video resolution
  • Built-in HD digital image module with 2 million effective pixels
  • Lateral reflection light source for surface and physical specimen observation
  • Double-layer stage with left-right and forward-backward movement
  • Touch control: long press to power on/off, short press to turn screen off
  • Integrated measurement function with scale calibration via free software
  • Objective lenses: 4x, 10x, 40x; total magnification range 60x–600x

Who it is for

  • Educational institutions requiring digital microscopes for biology labs
  • Clinics and small diagnostic labs needing low-cost digital imaging
  • Distributors sourcing compact digital microscopes for teaching or entry-level use
  • Researchers performing routine sample observation with measurement needs

Specifications

ModelA100
Screen Size7 inches
Screen Resolution1280×800
Photo Resolution2MP
Video Resolution720p/30fps
Objective Lenses4x, 10x, 40x
Total Magnification60x–600x
Light SourceLateral reflection
Measurement FunctionYes, with scale calibration
Intelligent ShutdownYes

Use guide

  • Power on by long pressing the multifunction key; turn screen off with short press
  • Adjust stage position using left-right and forward-backward controls for optimal sample alignment
  • Select objective lens (4x, 10x, 40x) based on required magnification
  • Use measurement function in software to calibrate scale and record dimensions
  • Store images and videos directly on internal 8G memory

FAQ

Does the A100 have external video output?
No. The A100 has no USB, HDMI, or other external output ports. Data is stored internally on 8G memory.
Can I measure sample dimensions?
Yes. The microscope includes a free professional software with scale calibration and measurement tools.
What is the screen size and resolution?
7 inches with 1280×800 resolution. It is a touch-enabled LCD display.
What is the magnification range?
60x to 600x using 4x, 10x, and 40x objective lenses.
Is there a battery?
No. The A100 does not include a battery. It requires external power.
