4.3 Inch 2x-32x LCD Electronic Vision Aid HD Color Video Magnifier

3.5 inch LCD screen for viewing

Key Features

• 2x to 32x continuous magnification with adjustable focus for fine detail inspection
• 4.3 inch HD color LCD with 300cd/m² brightness and 12 selectable display modes for optimal visibility

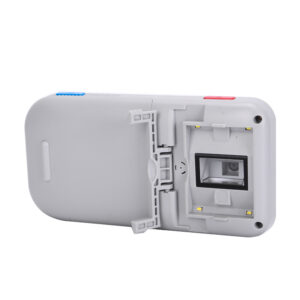

• Zero distance design with expansion brackets allows direct writing or marking under the lens
• AV output enables connection to external displays for shared viewing or documentation
• Removable lithium battery provides up to 4 hours of continuous operation with 4–6 hour charging time

Technical Features

• Display type: 4.3 inch HD color LCD widescreen
• Display resolution: 320×240
• Screen brightness: 300cd/m², adjustable
• LED auxiliary lights with adjustable intensity; can be turned off
• Working distance: 1 mm (minimum) to 5 cm (maximum)
• Magnification range: 2x to 32x, continuously adjustable
• Display mode selection: 12 patterns including full color, negative, black/white, blue/yellow/green backgrounds
• Image freeze function for detailed analysis
• AV output: supports connection to TV or monitor
• Memory function: saves last user settings automatically
• Intelligent power saving: shuts down after 3 minutes of inactivity
• Key tone: adjustable volume; can be turned off
• Battery: removable lithium battery (1500 mAh), 4 hours continuous use, 4–6 hours charging
• Power input: 5V/250mA (max)
• Dimensions: 158 mm x 80 mm x 24 mm
• Weight: 190 grams (with batteries)
• Packaging: neutral white box

Specifications

Applications

• Inspection of small electronic components, PCB traces, and solder joints in repair or quality control
• Reading fine print or small text for visually impaired users in clinical or office settings
• Use in low-light environments with adjustable LED auxiliary lighting
• Documentation of inspection results via AV output to a monitor or TV
