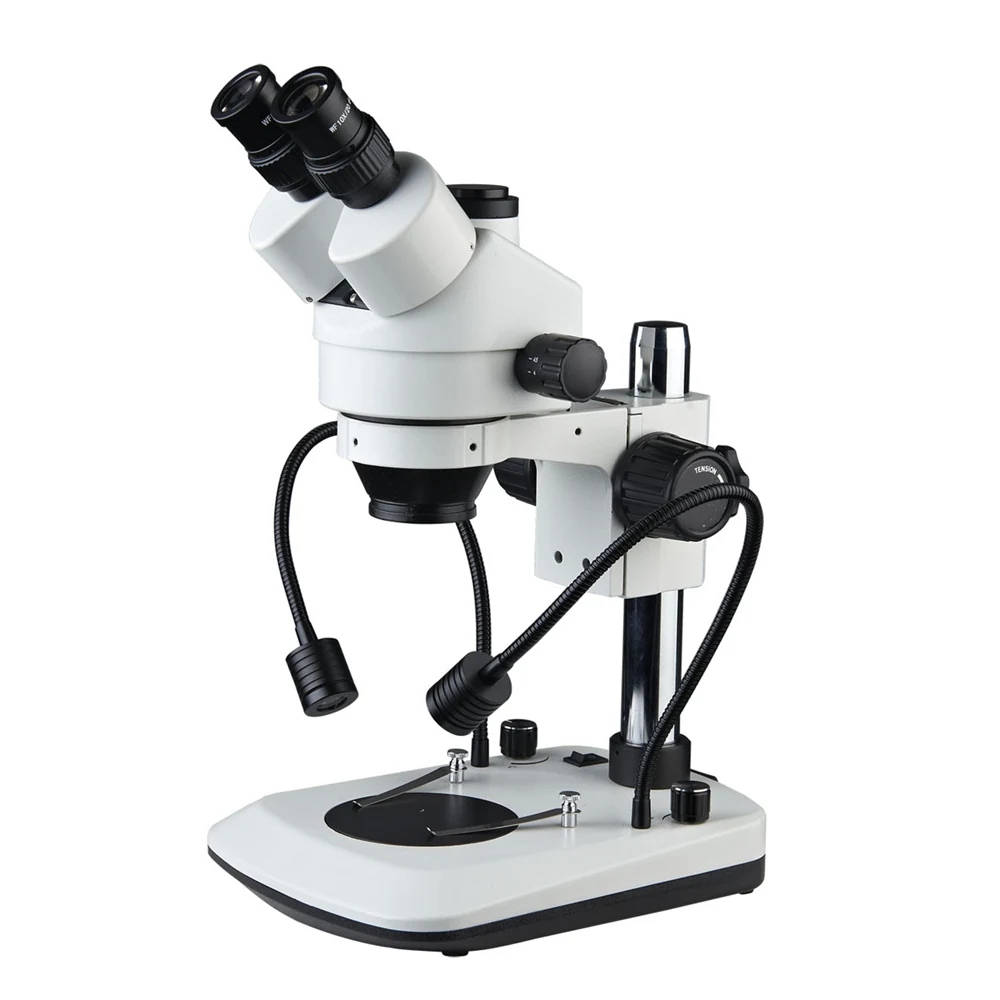

XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry
XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B8LS 7-45X Zoom Stereo Microscope for Electronic Industry

XSZ7045-B8LS is a zoom stereo microscope from Nanjing AMADA Instrument designed for electronics inspection, PCB assembly, and precision bench work. The model offers a magnification range of 7X–45X with optional eyepieces and objectives, a 100 mm working distance on the standard 1X path, and a greenough optical system with binocular or trinocular head options. It supports multiple auxiliary objectives and interchangeable eyepieces for flexible field of view and magnification control.

  • Magnification range extends to 7X–45X with optional accessories, enabling detailed inspection of small components
  • 100 mm working distance on standard 1X path allows space for tools and fixtures during soldering and rework
  • Optional auxiliary objectives (0.3X to 2X) and eyepieces (WF15X to 30X) let buyers tailor magnification and field of view
  • Binocular or trinocular head options support both visual observation and camera integration
  • Greenough optical system provides natural stereo depth perception for precision handling
Request A Quote +86-15195807515

Technical features

  • Zoom ratio 1:6.4; magnification range 0.7X–4.5X on standard 1X objective path
  • Working distance 100 mm with 1X objective; varies from 30 mm to 165 mm with auxiliary objectives
  • Interpupillary adjustment 55–75 mm for user comfort and alignment
  • Greenough optical system for stereo depth perception
  • Binocular or trinocular head options with adjustable eyepiece diopter
  • Optional auxiliary objectives: 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
  • Optional eyepieces: WF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
  • Field of view range: 1.1 mm to 57.1 mm depending on eyepiece and objective combination

Who it is for

  • Electronics manufacturers and contract assemblers
  • Importers sourcing inspection microscopes for production or quality control lines
  • Distributors building a product catalog for industrial and electronics inspection

Specifications

ModelXSZ7045-B8LS
Zoom Ratio1:6.4
Standard Magnification Range0.7X–4.5X
Working Distance (1X)100 mm
Interpupillary Adjustment55–75 mm
Optical SystemGreenough
Head TypeBinocular / Trinocular
Auxiliary Objectives0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Optional EyepiecesWF15X/15mm, WF20X/10mm, 25X/9mm, 30X/8mm
Field of View Range1.1 mm – 57.1 mm
Extended Magnification Range7X–45X, 3.5X–270X

Use guide

  • Select binocular or trinocular head based on whether camera integration is needed
  • Choose auxiliary objective (e.g., 0.5X) to increase working distance or 2X to increase magnification
  • Select eyepiece (e.g., 30X) to achieve the highest magnification and narrowest field of view
  • Combine objectives and eyepieces to achieve desired magnification range (7X–45X or 3.5X–270X)

FAQ

What is the working distance on the standard 1X configuration?
100 mm with the 1X objective. With auxiliary objectives, it ranges from 30 mm to 165 mm.
Can I achieve 45X magnification?
Yes. The magnification range reaches 45X when using optional eyepieces and objectives (e.g., 30X eyepiece with 1.5X objective).
What eyepieces are available?
WF15X/15mm, WF20X/10mm, 25X/9mm, and 30X/8mm are available as optional accessories.
Is a trinocular head available?
Yes. The XSZ7045-B8LS is available with a trinocular head for camera integration.
What is the maximum field of view?
The maximum field of view is 57.1 mm, achieved with the lowest magnification combination (e.g., 0.3X objective and WF15X eyepiece).
Who manufactures this model?
Nanjing AMADA Instrument Co., Ltd. (bestamada.com), Nanjing, Jiangsu, China.
