Home / Products / Scalp Detector Analyzer / HT-80PL Telephoto Polarizing Microscope

HT-80PL Telephoto Polarizing Microscope for Skin and Hair Analysis

  • Model: HT-80PL (Telephoto Polarizing Microscope)
  • Controller: High Speed DSP(M-jpeg)/CMOS Sensor
  • Magnification Range: 1X ~ 500X
  • Take Images: SNAP Shot
  • Pixels: 5.0MP Light
Send Inquiry

AMADA HT-80PL telephoto polarizing microscope for skin and hair analysis: 1X–500X magnification, 8 LED light, USB connectivity, 5.0MP, supports PC and Android.

Key Features

  • Telephoto design enables close-up analysis of skin and hair without physical contact
  • Built-in 8 LED array provides adjustable brightness up to 30000LUX for consistent lighting
  • Supports multiple resolutions from 320×240 to 2592×1944 for detailed image capture

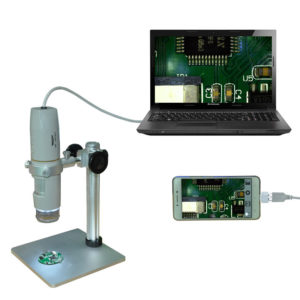

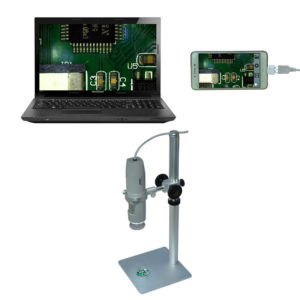

  • USB interface allows direct connection to PC or Android devices with OTG function
  • Multi-language interface (Chinese, English, German, Russian, French, Japanese, Korean, Spanish, Italian) with OEM language expansion available

Technical Features

  • Magnification range: 1X to 500X
  • Built-in 8 white-light LEDs with brightness adjustable from 0 to 30000LUX
  • CMOS sensor with high-speed DSP (M-JPEG) for real-time image processing
  • Video capture resolutions: 320×240, 640×480, 800×600, 1024×768, 1280×960, 1600×1200, 2592×1944
  • Frame rate: 15–30 frames per second under 500 LUX brightness
  • USB interface for power and data transfer (5V DC)
  • Focus range: 4 to 50 cm
  • Supports operating systems: Windows XP/Vista/7/8/10, Android (OTG function)
  • Software: HotViewer (PC), HotMicroscope (Android)
  • Dimensions: 144 mm (L) × 37 mm (D)
  • Gross weight: 850g

Specifications

ModelHT-80PL
Magnification Range1X – 500X
Light SourceBuilt-in 8 White-light LED (0–30000LUX)
Video Capture Resolutions320×240, 640×480, 800×600, 1024×768, 1280×960, 1600×1200, 2592×1944
Frame Rate15–30 f/s under 500 LUX
Sensor TypeCMOS
ControllerHigh Speed DSP (M-JPEG)
ConnectionUSB interface
Power SupplyUSB (5V DC)
Focus Range4–50 cm
Supported OSWindows XP/Vista/7/8/10, Android (OTG)
Dimensions144 mm (L) × 37 mm (D)
Gross Weight850g
ColorGray

Applications

  • Clinical dermatology practices for non-invasive skin condition assessment
  • Hair analysis in trichology labs or beauty clinics
  • Mobile inspection stations using Android phones via OTG connection
  • Training or demonstration setups requiring real-time image sharing
