Description
The HDMI & USB industrial microscope camera with 1/3″ sensor is designed for high-resolution imaging in industrial inspection, PCB testing, quality control, and laboratory applications. Equipped with a reliable image sensor and dual output interfaces, it delivers crisp image detail and accurate color reproduction for professional workflows.
This microscope camera supports **real-time HDMI output** for direct display on monitors, as well as **USB capture** for computer-based analysis and documentation. The combination of HDMI and USB connectivity provides flexible imaging options for inspection benches, manufacturing lines, and research labs.
Model: AM3609
Key Features
- 1/3″ high-quality imaging sensor
- HDMI real-time display output with minimal latency
- USB capture for computer imaging and analysis
- Accurate color reproduction and low noise performance
- Compatible with industrial and laboratory microscope systems
Applications
- Industrial visual inspection and quality control
- PCB inspection and electronics manufacturing testing
- Surface defect detection and documentation
- Laboratory research and imaging observation
|
Specification |
Model | AM3609 |
| Series | HDMI Industrial Camera | |
| Sensor size | 1/3″ | |
| Effective pixel | Full HD | |
| Resolution | 1920*1080@30FPS | |

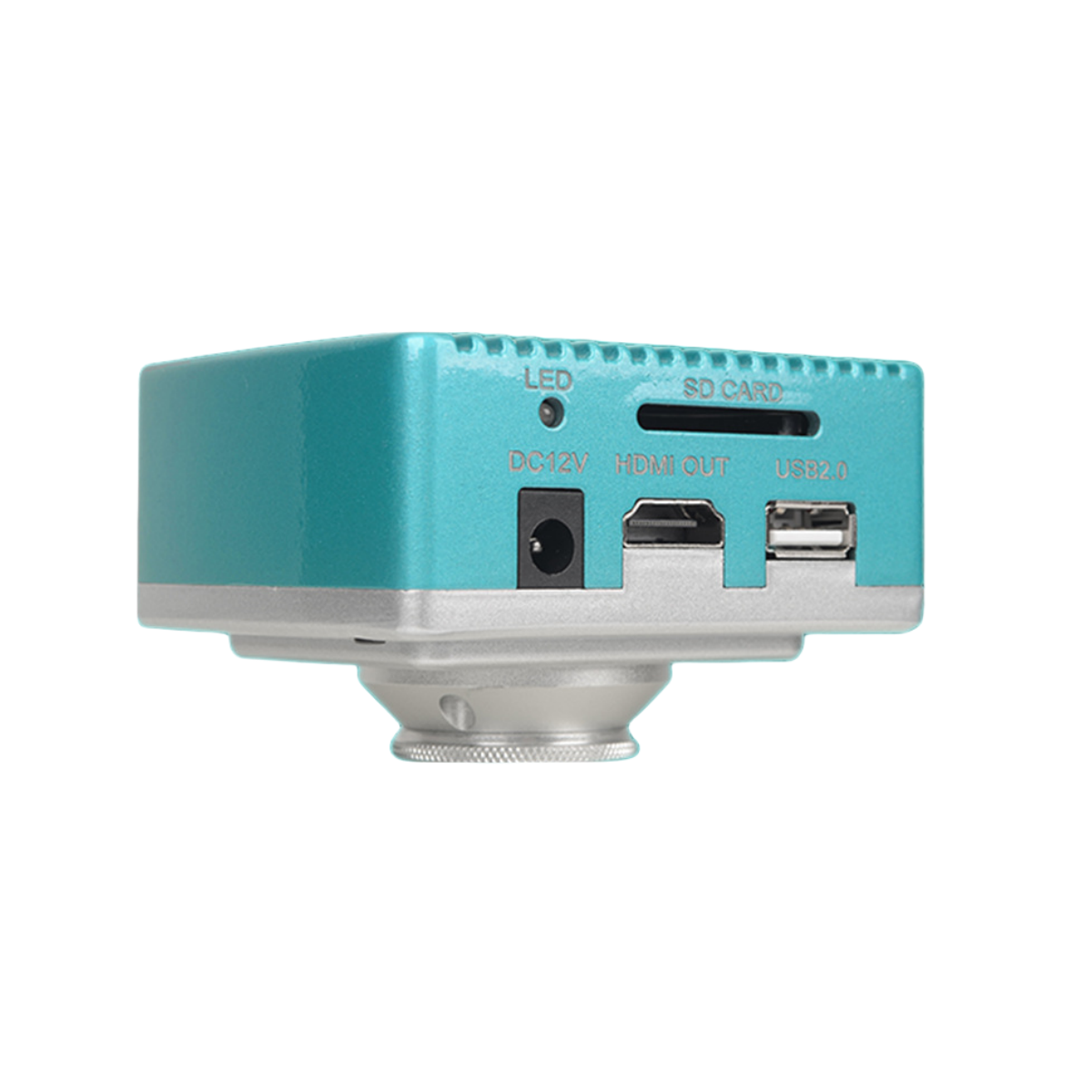

| Output | HDMI、USB、SD card | |
| Pixel size | 2.75*2.75 μm | |
| Power | DC-12V/1A | |
| Features | Basic function | Brightness, Contrast, Saturation, White balance, Black-and-white switch, HDR wide dynamic |
| UI interface | Easy mouse control | |
| Image adjustment | Exposure, Flicker restrain, Acutance, Gamma, Cb/ Crgain adjustment | |
| Camera function | digital amplification, mirroring, contrast, noise reduction, screen freeze Cross-line can define color, line, hide and display |
|
| Crosshair | Can adjust color, line size, hide or display | |
| Reticle | 4 sets of reticle, can adjust color, size, shift andhide | |
| Grid line | 8 sets of grid lines, each set can be corresponding toone product | |
| Package | Size | 83.60*74.00*50.00 mm |
| Weight | 0.3kg | |

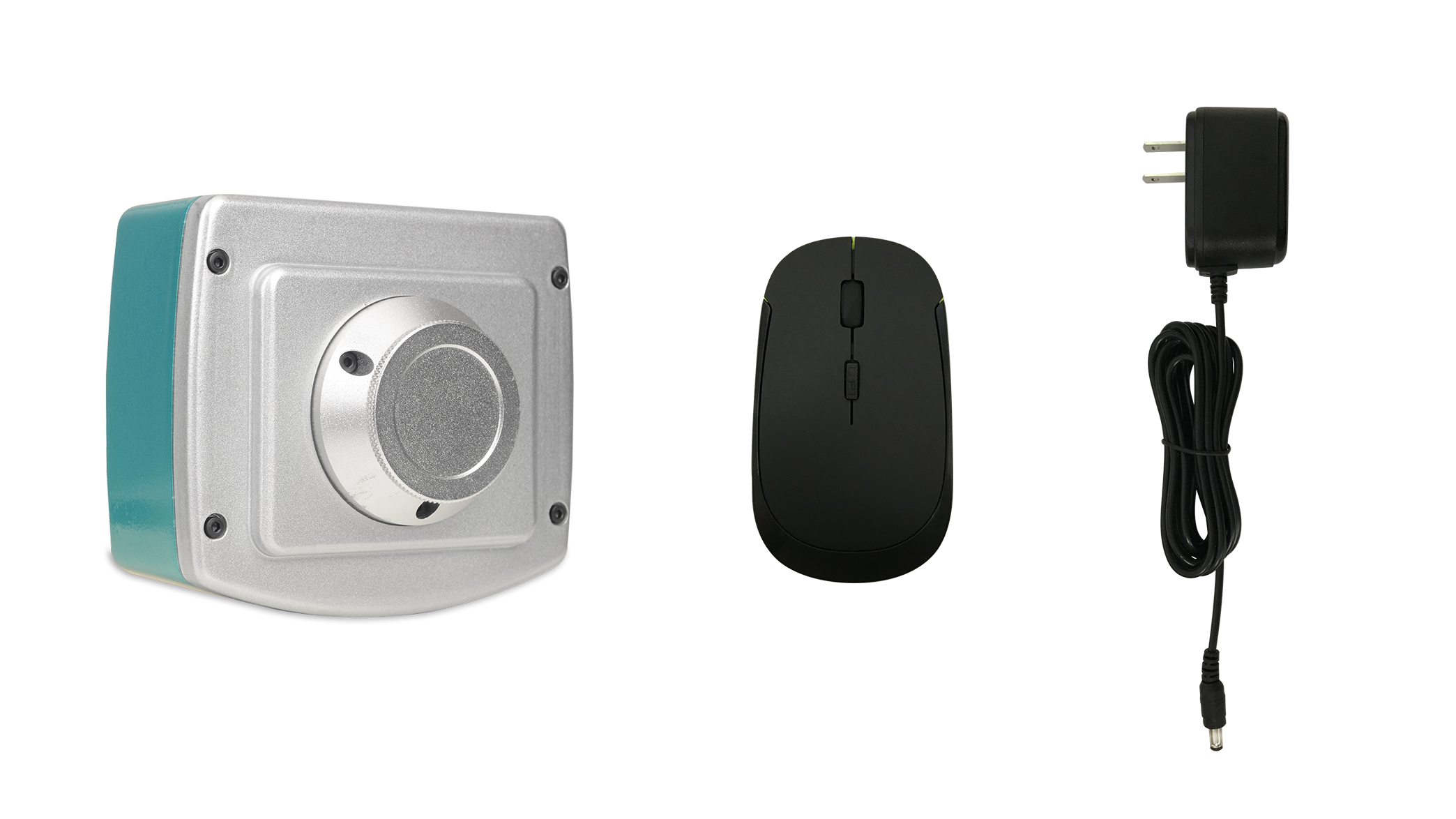

| Standard accessory | Mouse, DC-12V Power adapter |
